EF20C04E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers

Download the EF20C04E3 datasheet PDF. This datasheet also covers the EF20CXXE3 variant, as both devices belong to the same 20amp. glass passivated efficient fast recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Mechanical Data.
  • Case: Molded plastic, TO-220AB.
  • Terminals: Solderrable per MIL-STD-202 method 208.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Mounting Position: Any.
  • Weight: 2.24 grams Maximum Ratings and Electrical Characteristics (Rating at 25°C ambient temperature unless otherwise specified. resistive or inductive load. Single phase, half wave, 60Hz, For capacitive load, derate current by 20%. ) mbol VRRM VRMS VDC VF 0.975 I(AV) 20 IFSM 150 125 EF.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EF20CXXE3-CYStechElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EF20C04E3
Manufacturer CYStech Electronics
File Size 252.49 KB
Description 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
Datasheet download datasheet EF20C04E3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EF20 POWER TRANSFORMER MODULES FPE
EF2005FCT 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS Frontier Electronics
EF2010FCT 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS Frontier Electronics
EF201PG 2.0A Glass Passivated Leaded Efficient Fast Rectifiers American First Semiconductor
EF2020FCT 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS Frontier Electronics

Other Datasheets by CYStech Electronics

Part Number Description
EF20C01E3 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
EF20C02E3 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
EF20C03E3 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
EF20C05E3 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
EF20C06E3 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

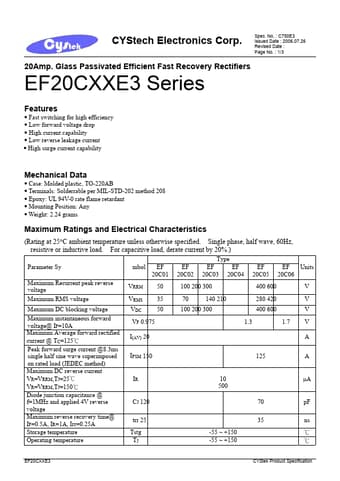

CYStech Electronics Corp. 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers Spec. No. : C750E3 Issued Date : 2006.07.26 Revised Date : Page No. : 1/3 EF20CXXE3 Series • Fast switching for high efficiency • Low forward voltage drop • High current capability • Low reverse leakage current • High surge current capability Features Mechanical Data • Case: Molded plastic, TO-220AB • Terminals: Solderrable per MIL-STD-202 method 208 • Epoxy: UL 94V-0 rate flame retardant • Mounting Position: Any • Weight: 2.24 grams Maximum Ratings and Electrical Characteristics (Rating at 25°C ambient temperature unless otherwise specified. resistive or inductive load. Single phase, half wave, 60Hz, For capacitive load, derate current by 20%.) mbol VRRM VRMS VDC VF 0.
