EF2010FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS

Download the EF2010FCT datasheet PDF (EF2005FCT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 20.0a glass passivated efficiency fast rectifiers.

Features

  • 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EF2005FCT-FrontierElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EF2010FCT
Manufacturer Frontier Electronics
File Size 1.63 MB
Description 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS
Datasheet download datasheet EF2010FCT Datasheet

📁 Similar Datasheet

  • EF201PG - 2.0A Glass Passivated Leaded Efficient Fast Rectifiers (American First Semiconductor)
  • EF20 - POWER TRANSFORMER MODULES (FPE)
  • EF202PG - 2.0A Glass Passivated Leaded Efficient Fast Rectifiers (American First Semiconductor)
  • EF203PG - 2.0A Glass Passivated Leaded Efficient Fast Rectifiers (American First Semiconductor)
  • EF204PG - 2.0A Glass Passivated Leaded Efficient Fast Rectifiers (American First Semiconductor)
  • EF205PG - 2.0A Glass Passivated Leaded Efficient Fast Rectifiers (American First Semiconductor)
  • EF20C01E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers (CYStech Electronics)
  • EF20C02E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers (CYStech Electronics)
  • EF20C03E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers (CYStech Electronics)
  • EF20C04E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers (CYStech Electronics)
Other Datasheets by Frontier Electronics
  • EF2005FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS
  • EF2020FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS
  • EF2040FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS
  • EF2040FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS
  • EF2060FCT - 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS

Full PDF Text Transcription

Click to expand full text

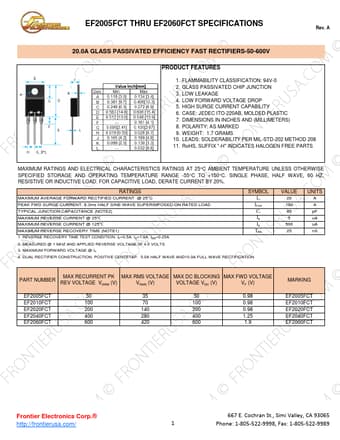

EF2005FCT THRU EF2060FCT SPECIFICATIONS Rev. A 20.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS-50-600V PRODUCT FEATURES 1. FLAMMABILITY CLASSIFICATION: 94V-0 2. GLASS PASSIVATED CHIP JUNCTION 3. LOW LEAKAGE 4. LOW FORWARD VOLTAGE DROP 5. HIGH SURGE CURRENT CAPABILITY 6. CASE: JEDEC ITO-220AB, MOLDED PLASTIC 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. POLARITY: AS MARKED 9. WEIGHT: 1.7 GRAMS 10. LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208 11. RoHS, SUFFIX "-H" INDICATES HALOGEN FREE PARTS MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED STORAGE AND OPERATING TEMPERATURE RANGE -55°C TO +150°C. SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%.
