CRM60GH30E4 - 600V 30A 3-phase IPM

CR Micro

📥 Download Datasheet

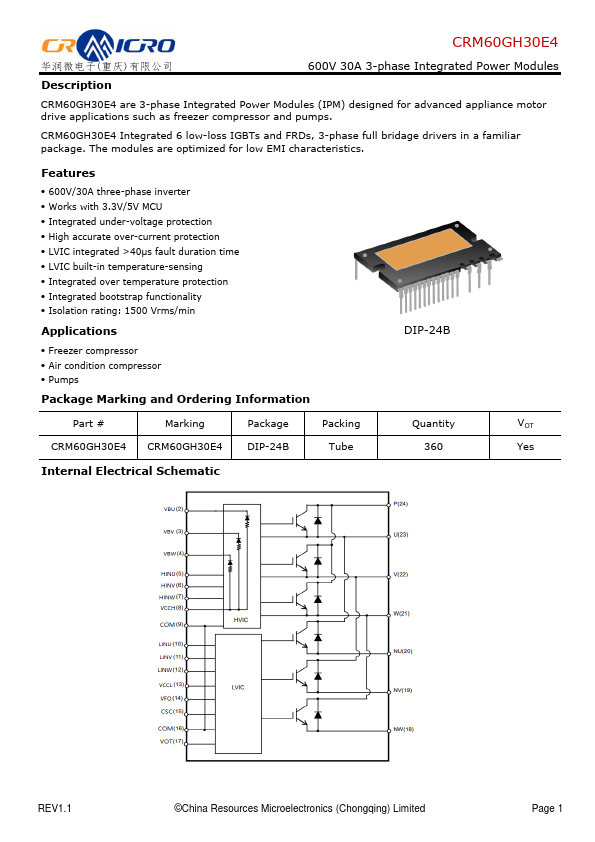

CRM60GH30E4 Datasheet Preview — Preview of CRM60GH30E4 PDF

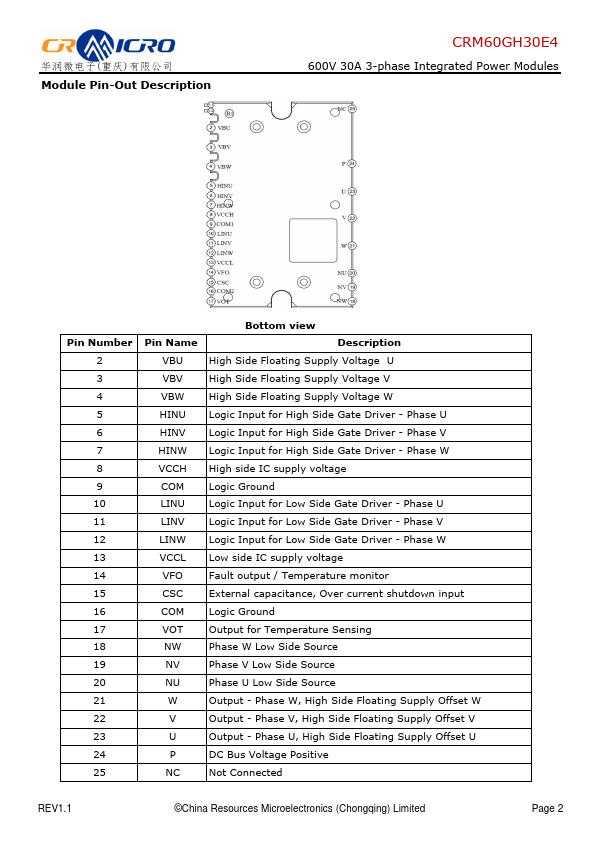

datasheet Preview Page 2

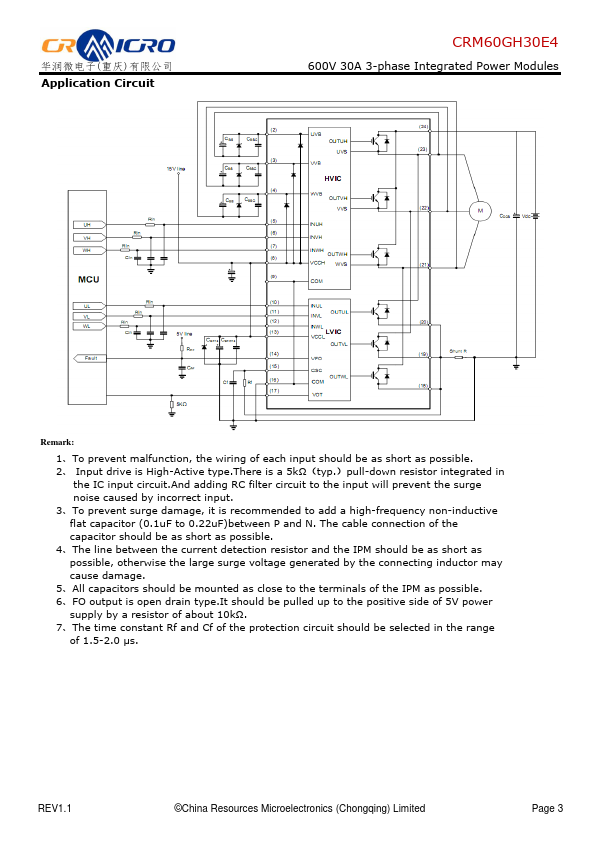

datasheet Preview Page 3

Datasheet Details

Part number	CRM60GH30E4
Manufacturer	CR Micro
File Size	478.24 KB
Description	600V 30A 3-phase IPM
Datasheet	CRM60GH30E4-CRMicro.pdf

CRM60GH30E4 Product details

Description

CRM60GH30E4 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as freezer compressor and pumps.

Features

600V/30A three-phase inverter.
Works with 3.3V/5V MCU.
Integrated under-voltage protection.
High accurate over-current protection.
LVIC integrated >40μs fault duration time.
LVIC built-in temperature-sensing.
Integrated over temperature protection.
Integrated bootstrap functionality.
Isolation rating: 1500 Vrms/min.
