CRM60GH10E4 - 600V 10A 3-phase IPM

CR Micro

📥 Download Datasheet

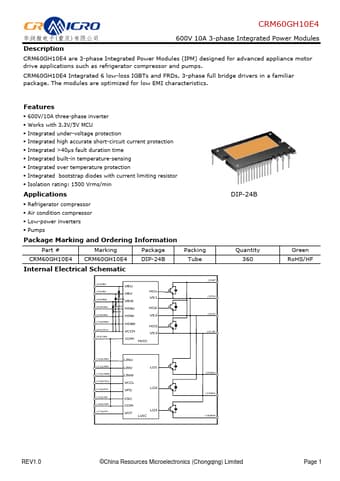

CRM60GH10E4 Datasheet Preview — Preview of CRM60GH10E4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CRM60GH10E4
Manufacturer	CR Micro
File Size	557.80 KB
Description	600V 10A 3-phase IPM
Datasheet	CRM60GH10E4-CRMicro.pdf

CRM60GH10E4 Product details

Description

CRM60GH10E4 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as refrigerator compressor and pumps.

Features

600V/10A three-phase inverter.
Works with 3.3V/5V MCU.
Integrated under-voltage protection.
Integrated high accurate short-circuit current protection.
Integrated >40μs fault duration time.
Integrated built-in temperature-sensing.
Integrated over temperature protection.
Integrated bootstrap diodes with current limiting resistor.
Isolation rating: 1500 Vrms/min.
