CRM60G06E1 - 600V 6A 3-phase IPM

CR Micro

📥 Download Datasheet

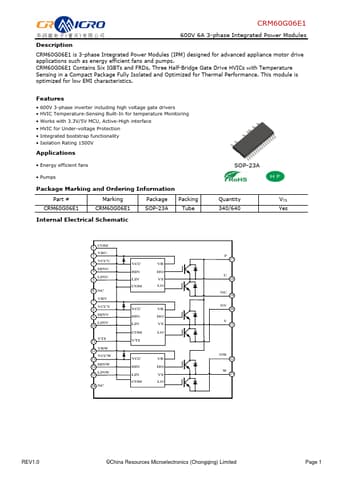

CRM60G06E1 Datasheet Preview — Preview of CRM60G06E1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CRM60G06E1
Manufacturer	CR Micro
File Size	275.10 KB
Description	600V 6A 3-phase IPM
Datasheet	CRM60G06E1-CRMicro.pdf

CRM60G06E1 Product details

Description

CRM60G06E1 is 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps.

Features

600V 3-phase inverter including high voltage gate drivers.
HVIC Temperature-Sensing Built-In for temperature Monitoring.
Works with 3.3V/5V MCU, Active-High interface.
HVIC for Under-voltage Protection.
Integrated bootstrap functionality.
Isolation Rating 1500V.
