CBM97D39 - 14bit 2.5G DAC

📥 Download Datasheet

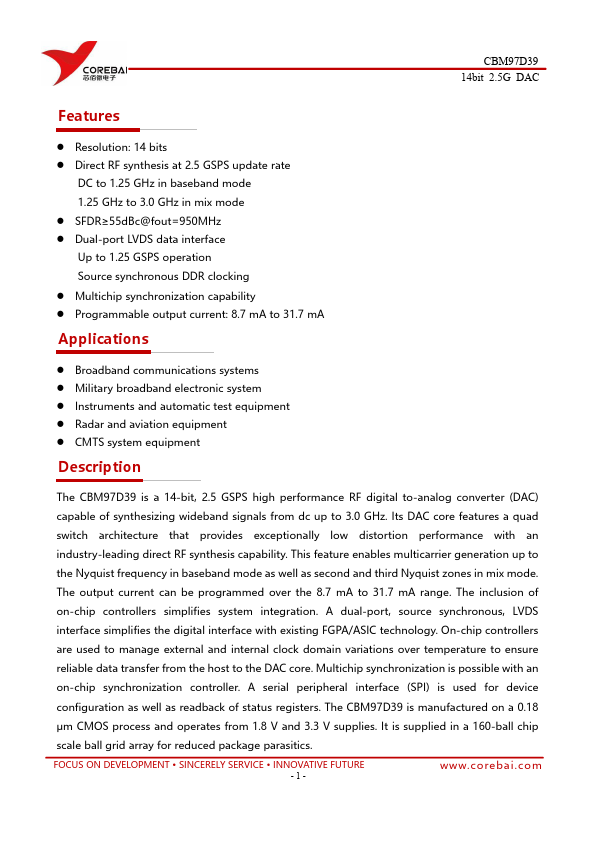

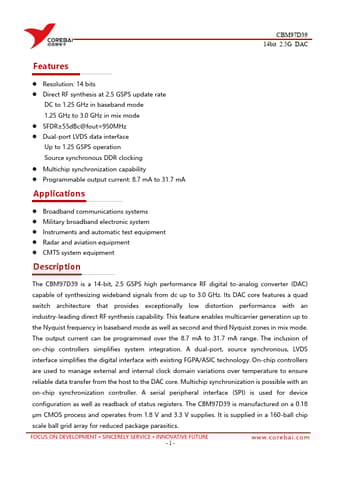

CBM97D39 Datasheet Preview — Preview of CBM97D39 PDF

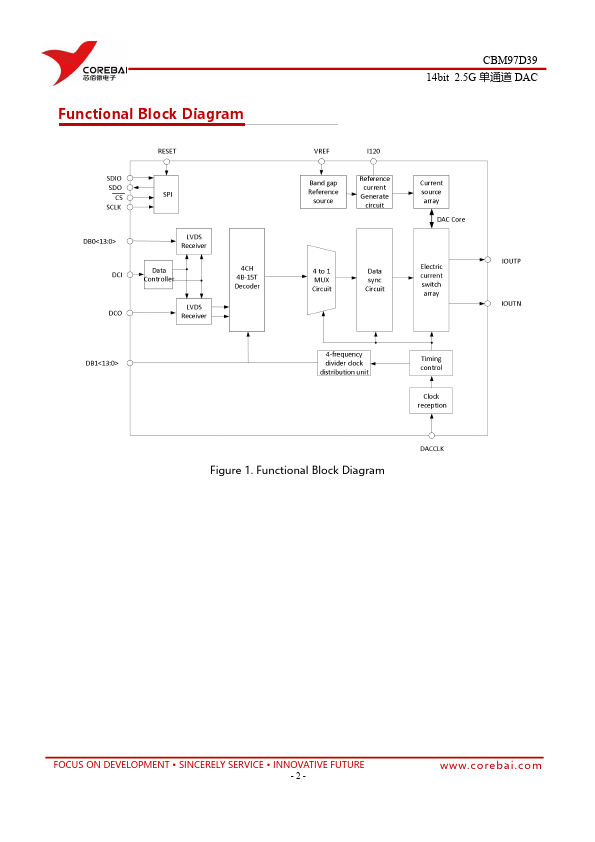

datasheet Preview Page 2

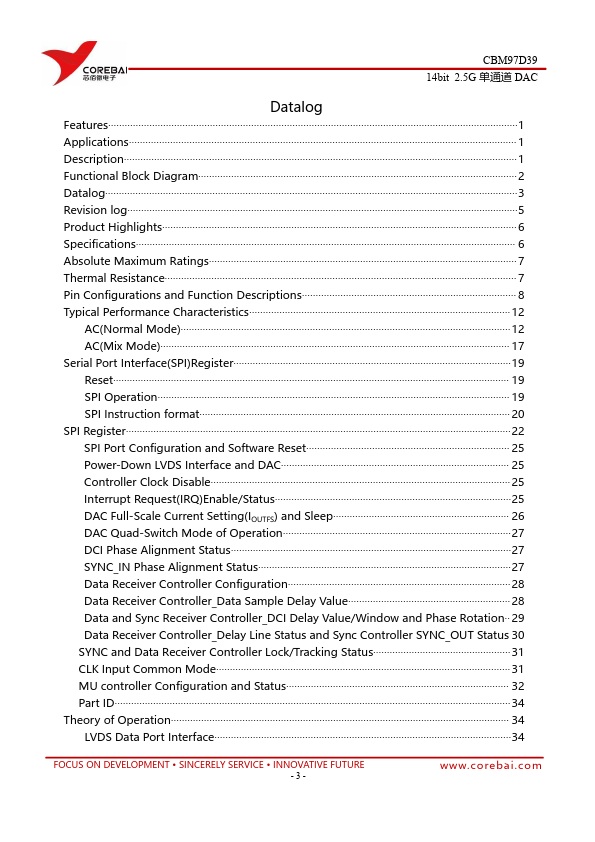

datasheet Preview Page 3

Datasheet Details

Part number: CBM97D39
Manufacturer: COREBAI
File Size: 2.30 MB
Datasheet: CBM97D39-COREBAI.pdf
Description: 14bit 2.5G DAC

CBM97D39 Product details

Description

The CBM97D39 is a 14-bit, 2.5 GSPS high performance RF digital to-analog converter (DAC) capable of synthesizing wideband signals from dc up to 3.0 GHz.Its DAC core

Features

Resolution: 14 bits.
Direct RF synthesis at 2.5 GSPS update rate DC to 1.25 GHz in baseband mode 1.25 GHz to 3.0 GHz in mix mode.
SFDR≥55dBc@fout=950MHz.
Dual-port LVDS data interface Up to 1.25 GSPS operation Source synchronous DDR clocking.
Multichip synchronization capability.
Programmable output current: 8.7 mA to 31.7 mA.
