CBM96AD53 - 125MSPS analog-to-digital converter

📥 Download Datasheet

CBM96AD53 Datasheet Preview — Preview of CBM96AD53 PDF

Datasheet Details

Part number: CBM96AD53
Manufacturer: COREBAI
File Size: 1.05 MB
Datasheet: CBM96AD53-COREBAI.pdf
Description: 125MSPS analog-to-digital converter

CBM96AD53 Product details

Description

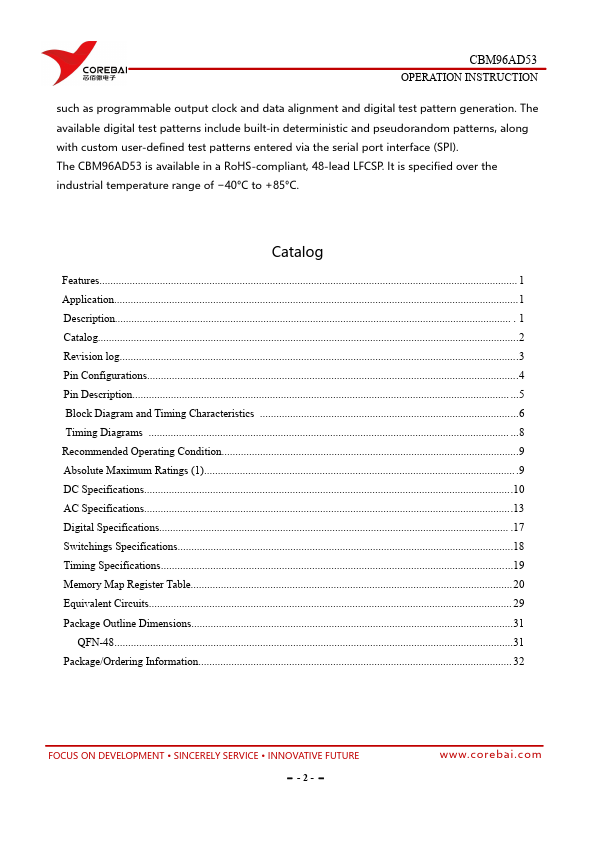

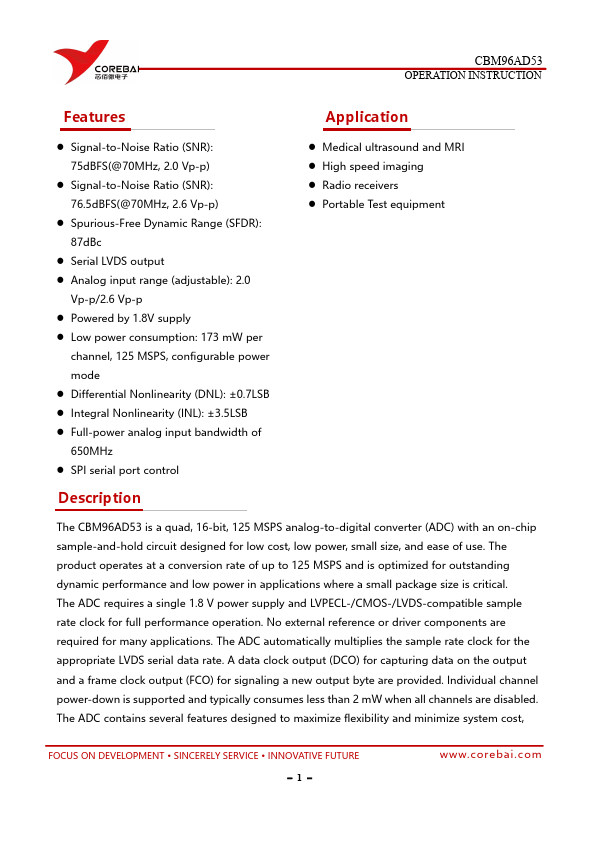

Medical ultrasound and MRI High speed imaging Radio receivers Portable Test equipment The CBM96AD53 is a quad, 16-bit, 125 MSPS analog-to-digital converter (ADC) with an on-chip sample-and-hold circuit designed for low cost, low power, small size, and ease of use.The product operates at a conversion rate of up to 125 MSPS and is optimized for outstanding dynamic performance and low power in applications where a small package size is critical.The ADC requires a single

Features

Application.
Signal-to-Noise Ratio (SNR): 75dBFS(@70MHz, 2.0 Vp-p).
Signal-to-Noise Ratio (SNR): 76.5dBFS(@70MHz, 2.6 Vp-p).
Spurious-Free Dynamic Range (SFDR): 87dBc.
Serial LVDS output.
Analog input range (adjustable): 2.0 Vp-p/2.6 Vp-p.
Powered by 1.8V supply.
Low power consumption: 173 mW per channel, 125 MSPS, configurable power mode.
Differential Nonlinearity (DNL): ±0.7LSB.
Integral Nonlinearity (INL): ±3.5LSB.
Full-power analog input ba.
