CBM1764 - low dropout regulator

Product Overview

📥 Download Datasheet

CBM1764 low dropout regulator by COREBAI - Datasheet Preview — Datasheet preview – CBM1764

Datasheet Details

Part number	CBM1764
Manufacturer	COREBAI
File Size	906.54 KB
Description	low dropout regulator
Datasheet	CBM1764 Datasheet
Additional preview pages of the CBM1764 datasheet.

Product details

Description

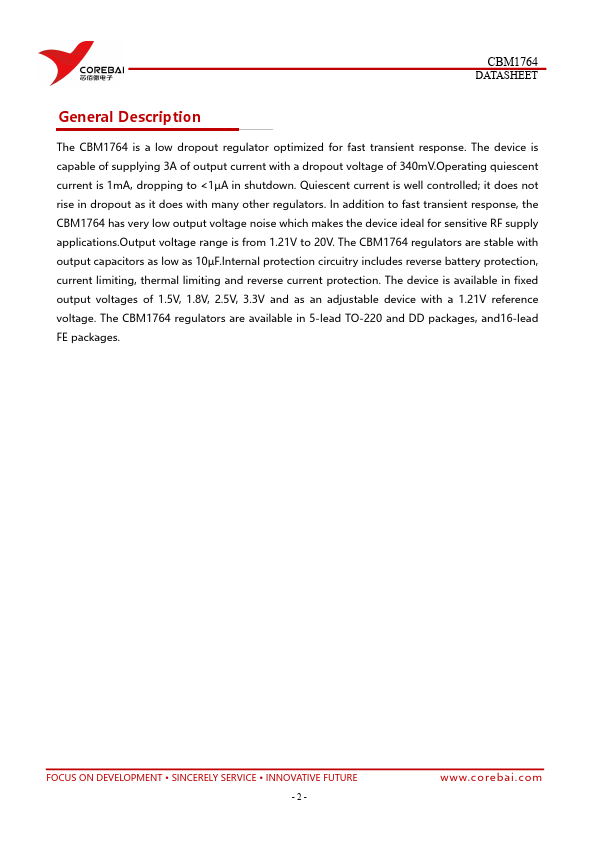

The CBM1764 is a low dropout regulator optimized for fast transient response.

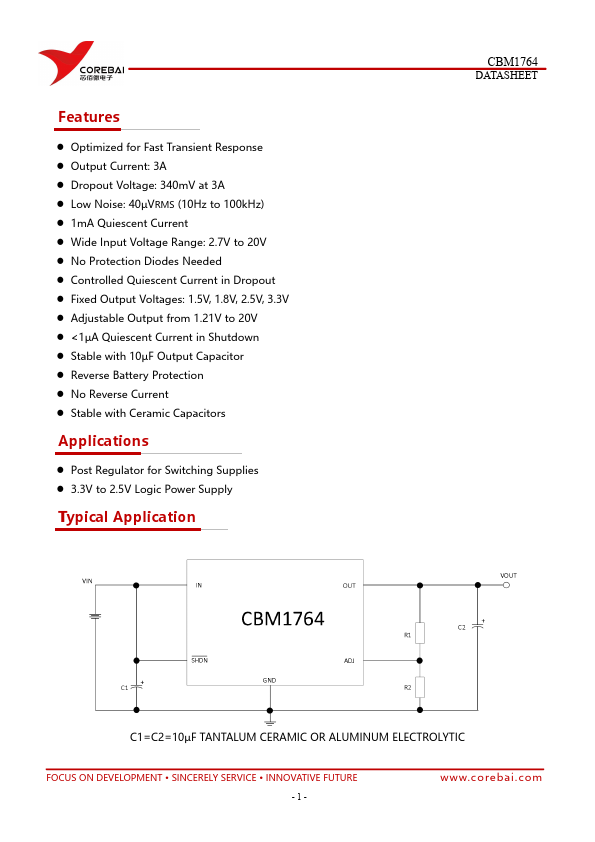

Features

Optimized for Fast Transient Response.
Output Current: 3A.
Dropout Voltage: 340mV at 3A.
Low Noise: 40µVRMS (10Hz to 100kHz).
1mA Quiescent Current.
Wide Input Voltage Range: 2.7V to 20V.
No Protection Diodes Needed.
Controlled Quiescent Current in Dropout.
Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V.
Adjustable Output from 1.21V to 20V.
