CBM2576-12 - regulators

Product Overview

Datasheet Details

Part number	CBM2576-12
Manufacturer	COREBAI
File Size	702.80 KB
Description	regulators
Datasheet	CBM2576-12 Datasheet
Note	This datasheet PDF includes multiple part numbers: CBM2576-12, CBM2576. Please refer to the document for exact specifications by model.

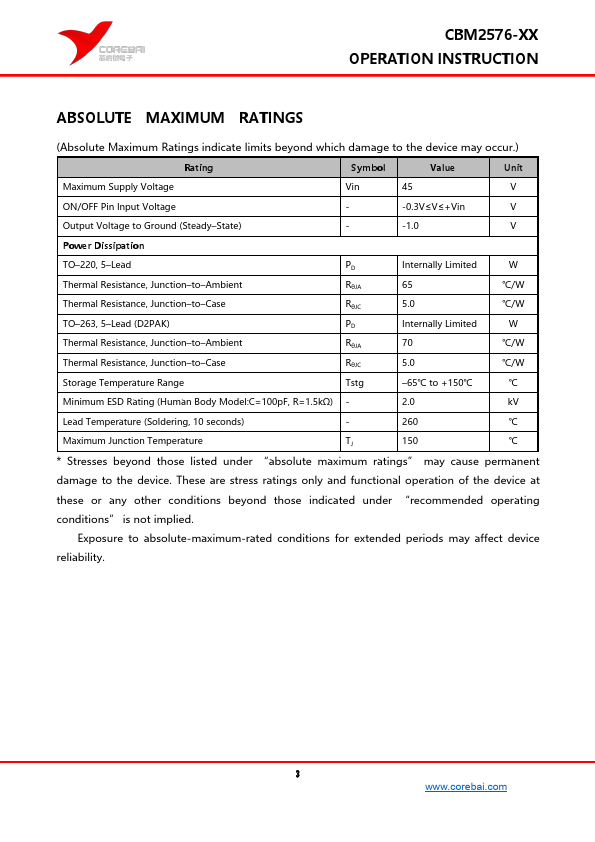

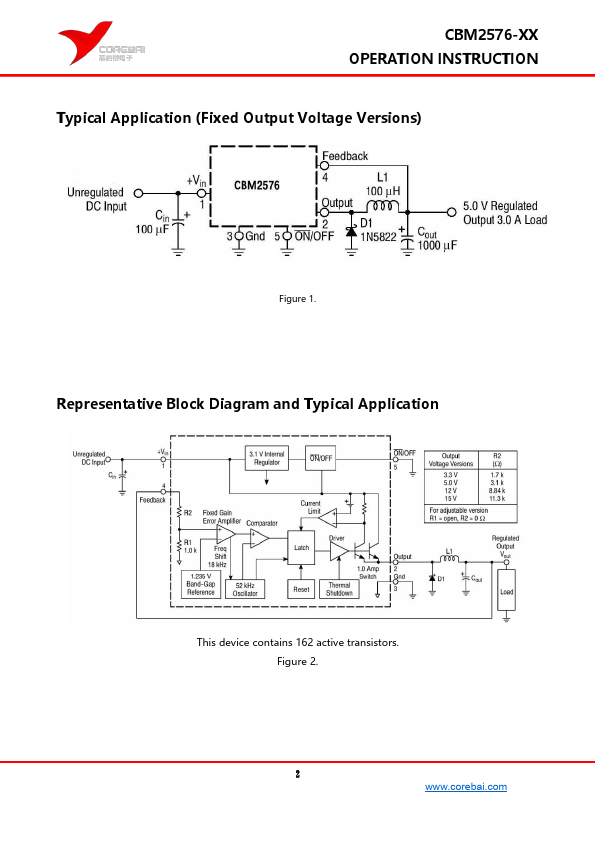

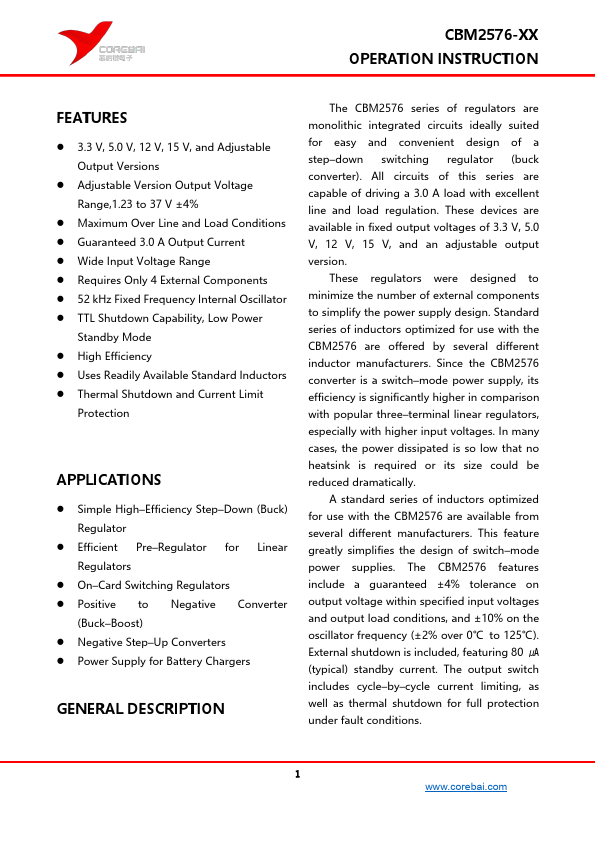

Additional preview pages of the CBM2576-12 datasheet.

Product details

Description

The CBM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step down switching regulator (buck converter).

Features

3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions.
Adjustable Version Output Voltage Range,1.23 to 37 V ±4%.
Maximum Over Line and Load Conditions.
Guaranteed 3.0 A Output Current.
Wide Input Voltage Range.
Requires Only 4 External Components.
52 kHz Fixed Frequency Internal Oscillator.
TTL Shutdown Capability, Low Power Standby Mode.
High Efficiency.
Uses Readily Available Standard Inductors.
Thermal Shutdown and Current Limit Prote.
