CBM53D04 - voltage output DAC

Product Overview

Datasheet Details

Part number	CBM53D04
Manufacturer	COREBAI
File Size	1.02 MB
Description	voltage output DAC
Datasheet	CBM53D04 Datasheet

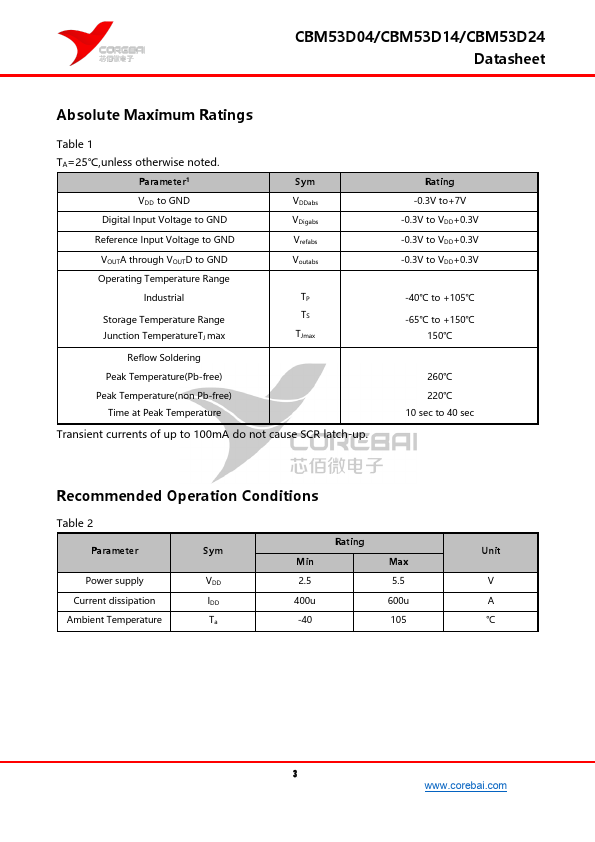

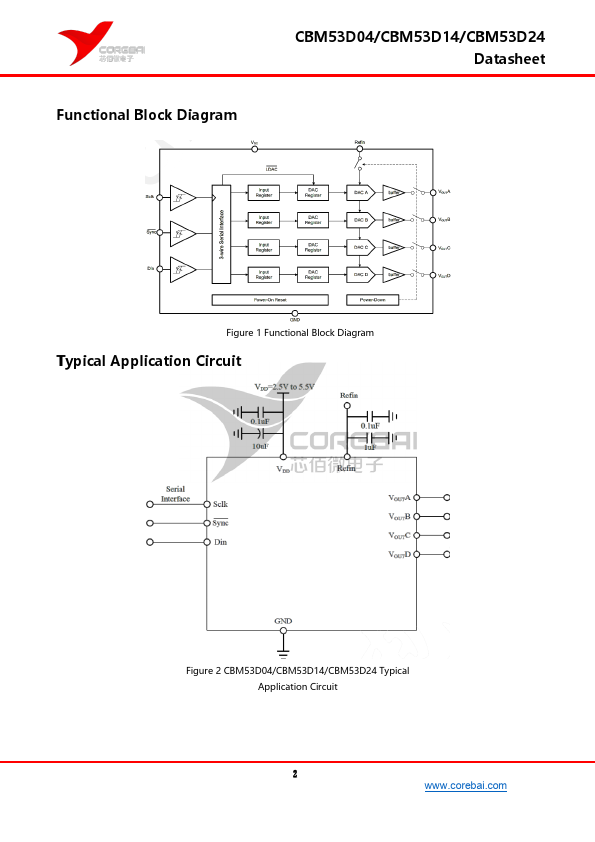

Additional preview pages of the CBM53D04 datasheet.

Product details

Description

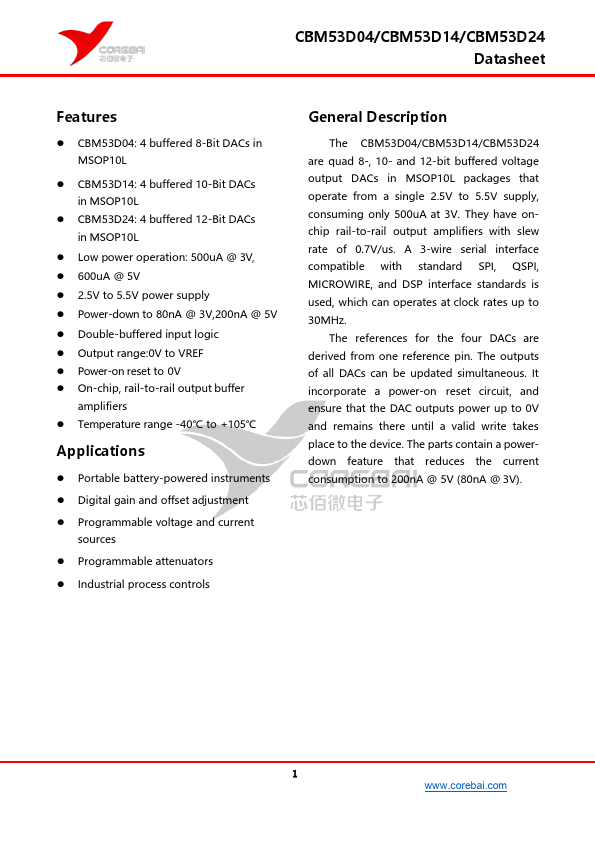

The CBM53D04/CBM53D14/CBM53D24 are quad 8-, 10- and 12-bit buffered voltage output DACs in MSOP10L packages that operate from a single 2.5V to 5.5V supply, consuming only 500uA at 3V.

Features

CBM53D04: 4 buffered 8-Bit DACs in MSOP10L.
CBM53D14: 4 buffered 10-Bit DACs in MSOP10L.
CBM53D24: 4 buffered 12-Bit DACs in MSOP10L.
Low power operation: 500uA @ 3V,.
600uA @ 5V.
2.5V to 5.5V power supply.
Power-down to 80nA @ 3V,200nA @ 5V.
Double-buffered input logic.
Output range:0V to VREF.
Power-on reset to 0V.
On-chip, rail-to-rail output buffer amplifiers.
Temperature range -40℃ to +105℃.
