CMT2210LW - Low-Cost 315/433.92MHz OOK Stand-Alone Receiver

CMOSTEK

The CMT2210LW by CMOSTEK is a Low-Cost 315/433.92MHz OOK Stand-Alone Receiver. Below is the official datasheet preview.

📥 Download Datasheet

CMT2210LW Low-Cost 315/433.92MHz OOK Stand-Alone Receiver by CMOSTEK - Datasheet Preview — Official preview page of the CMT2210LW Low-Cost 315/433.92MHz OOK Stand-Alone Receiver datasheet (CMOSTEK).

Datasheet Details

Part number	CMT2210LW
Manufacturer	CMOSTEK
File Size	409.66 KB
Description	Low-Cost 315/433.92MHz OOK Stand-Alone Receiver
Datasheet	CMT2210LW-CMOSTEK.pdf

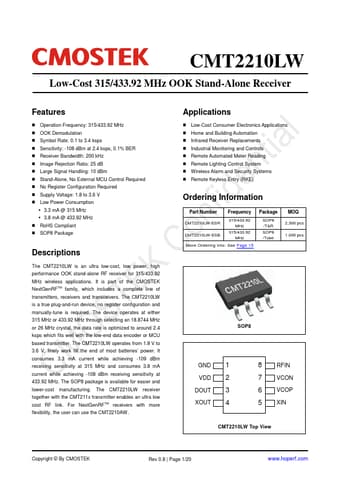

Additional preview pages of the CMT2210LW datasheet.

CMT2210LW Product details

Description

The CMT2210LW is an ultra low-cost, low power, high performance OOK stand-alone RF receiver for 315/433.92 MHz wireless applications.

Features

Operation Frequency: 315/433.92 MHz.
OOK Demodulation.
Symbol Rate: 0.1 to 3.4 ksps.
Sensitivity: -108 dBm at 2.4 ksps, 0.1% BER.
Receiver Bandwidth: 200 kHz.
Image Rejection Ratio: 25 dB.
Large Signal Handling: 10 dBm.
Stand-Alone, No External MCU Control Required.
No Register Configuration Required.
Supply Voltage: 1.8 to 3.6 V.
Low Power Consumption.
3.3 mA @ 315 MHz.
3.8 mA @ 433.92 MHz.
RoHS Compliant.
SOP8 Package.
