CMT2210LB, CMT2217B - OOK Standalone RF Receiver

CMOSTEK

The CMT2210LB by CMOSTEK is a OOK Standalone RF Receiver. Below is the official datasheet preview.

📥 Download Datasheet

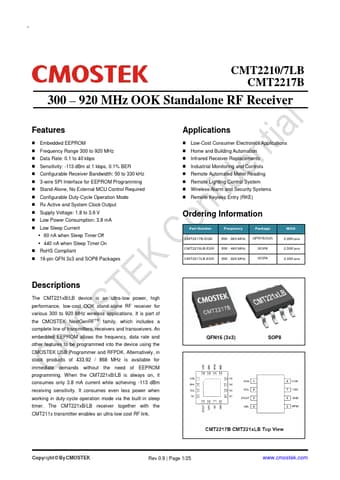

CMT2210LB OOK Standalone RF Receiver by CMOSTEK - Datasheet Preview — Official preview page of the **CMT2210LB** OOK Standalone RF Receiver datasheet (CMOSTEK).

Datasheet Details

Part number	CMT2210LB, CMT2217B
Manufacturer	CMOSTEK
File Size	937.23 KB
Description	OOK Standalone RF Receiver
Datasheet	CMT2217B-CMOSTEK.pdf
Note	This datasheet PDF includes multiple part numbers: CMT2210LB, CMT2217B. Please refer to the document for exact specifications by model.
Additional preview pages of the CMT2210LB datasheet.

CMT2210LB Product details

Description

The CMT221xB/LB device is an ultra-low power, high performance, low-cost OOK stand-alone RF receiver for various 300 to 920 MHz wireless applications.

Features

Embedded EEPROM.
Frequency Range 300 to 920 MHz.
Data Rate: 0.1 to 40 kbps.
Sensitivity: -113 dBm at 1 kbps, 0.1% BER.
Configurable Receiver Bandwidth: 50 to 330 kHz.
3-wire SPI Interface for EEPROM Programming.
Stand-Alone, No External MCU Control Required.
Configurable Duty-Cycle Operation Mode.
Rx Active and System Clock Output.
Supply Voltage: 1.8 to 3.6 V.
Low Power Consumption: 3.8 mA.
Low Sleep Current.
60 nA when Sleep Tim.
