BCM5238 10/100BASE-TX Transceiver

BCM5238 Description

ADVANCE DATA SHEET BCM5238 10/100BASE-TX Octal-Φ™ Transceiver GENERAL .
The BCM5238 is an octal 10/100BASE-TX transceiver for Fast Ethernet switches.

BCM5238 Features

* 10BASE-T/100BASE-TX IEEE 802.3u compliant
* Single-chip octal physical interface
* SMII to magnetics
* Option
* Source Synchronous SMII (SSSMII)
* Fully integrated digital adaptive equalizers
* 125-MHz clock generator and timing recovery

BCM5238 Applications

* Fast Ethernet switches TD± {1:8} RD± {1:8} Auto MDIX Multimode Xmt DAC Baseline Wander Correction ADC REF_CLK RDAC JTAG 5 CRS/Link Detection Clock Generator Bias Generator JTAG Test Logic Digital Adaptive Equalizer 10BASE-T PCS 100BASE-X PCS Auto-Negotiation /Link Integrity Cloc

📥 Download Datasheet

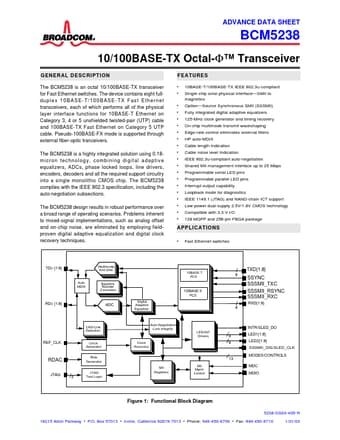

Preview of BCM5238 PDF
