BCM380P475M1K2A30, BCM380P475T1K2A30 Fixed Ratio DC-DC Converter

BCM380P475M1K2A30 Description

.
The VI Chip® Bus Converter (BCM®) is a high efficiency Sine Amplitude Converter™ (SAC™), operating from a 260 to 410 VDC primary bus to deliver an iso.

BCM380P475M1K2A30 Features

* Up to 1200 W continuous output power
* 1876 W/in3 power density
* 97.9% peak efficiency
* 4,242 Vdc isolation
* Parallel operation for multi-kW arrays
* OV, OC, UV, short circuit and thermal protection
* 6123 through-hole ChiP package n 2.494

BCM380P475M1K2A30 Applications

* 380 DC Power Distribution
* High End Computing Systems
* Automated Test Equipment
* Industrial Systems
* High Density Power Supplies
* Communications Systems
* Transportation BCM® Bus Converter BCM380x475y1K2A3z ®S C US C NRTL US Fixed Ratio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCM380P475M1K2A30, BCM380P475T1K2A30. Please refer to the document for exact specifications by model.

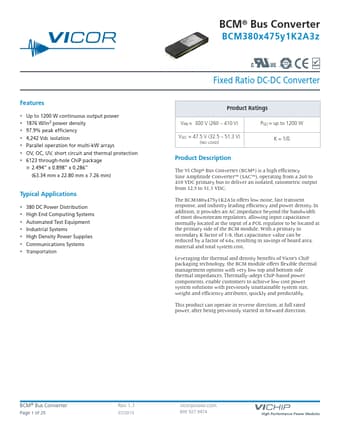

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCM380P475M1K2A30, BCM380P475T1K2A30
Manufacturer
Vicor
File Size
1.24 MB
Datasheet
BCM380P475T1K2A30-Vicor.pdf
Description
Fixed Ratio DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: BCM380P475M1K2A30, BCM380P475T1K2A30.
Please refer to the document for exact specifications by model.
