BCM400P500M1K8A31, BCM400P500T1K8A31 Fixed Ratio DC-DC Converter

BCM400P500M1K8A31 Description

.
The VI Chip® Bus Converter (BCM) is a high efficiency Sine Amplitude Converter (SAC), operating from a 260 to 410 VDC primary bus to deliver an isolat.

BCM400P500M1K8A31 Features

* Up to 1750 W continuous output power
* 2735 W/in3 power density
* 98.0% peak efficiency
* 4242 Vdc isolation
* Parallel operation for multi-kW arrays
* OV, OC, UV, short circuit and thermal protection
* 6123 through-hole ChiP package n 2.494”

BCM400P500M1K8A31 Applications

* 380 DC Power Distribution
* High End Computing Systems
* Automated Test Equipment
* Industrial Systems
* High Density Power Supplies
* Communications Systems
* Transportation BCM® Bus Converter BCM400y500x1K8A31 ®S C US C NRTL US Fixed Ratio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCM400P500M1K8A31, BCM400P500T1K8A31. Please refer to the document for exact specifications by model.

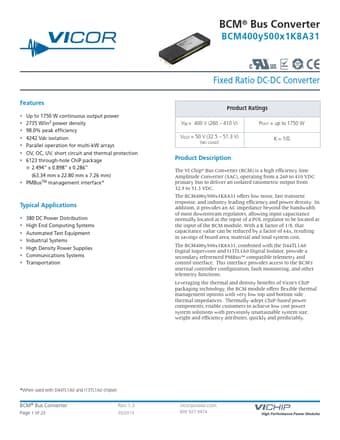

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCM400P500M1K8A31, BCM400P500T1K8A31
Manufacturer
Vicor
File Size
1.19 MB
Datasheet
BCM400P500T1K8A31-Vicor.pdf
Description
Fixed Ratio DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: BCM400P500M1K8A31, BCM400P500T1K8A31.
Please refer to the document for exact specifications by model.
