BCM5228 10/100BASE-TX/FX Transceiver

BCM5228 Description

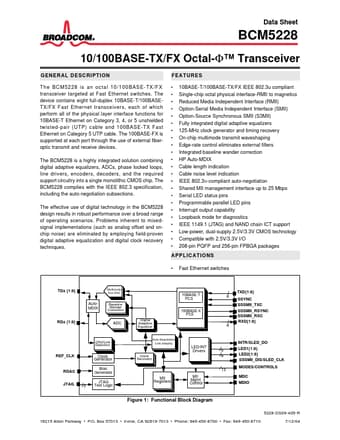

Data Sheet BCM5228 10/100BASE-TX/FX Octal-Φ™ Transceiver GENERAL .
FEATURES The BCM5228 is an octal 10/100BASE-TX/FX transceiver targeted at Fast Ethernet switches.

BCM5228 Features

* The BCM5228 is an octal 10/100BASE-TX/FX transceiver targeted at Fast Ethernet switches. The device contains eight full-duplex 10BASE-T/100BASETX/FX Fast Ethernet transceivers, each of which perform all of the physical layer interface functions for 10BASE-T Ethernet on Category 3, 4, or 5 unshielde

BCM5228 Applications

* Fast Ethernet switches TD± {1:8} RD± {1:8} AutoMDIX Multimode Xmt DAC Baseline Wander Correction ADC Digital Adaptive Equalizer 10BASE-T PCS 100BASE-X PCS TXD{1:8} 8 SSYNC SSSMII_TXC SSSMII_RSYNC SSSMII_RXC RXD{1:8} 8 CRS/Link Detection REF_CLK GeCnloecraktor RDAC Bias Generat
