AFBR-S50LV85D, AFBR-S50LV85D0 - Time-of-Flight Sensor

Name: AFBR-S50LV85D
SKU: AFBR-S50LV85D-1519393

Broadcom

📥 Download Datasheet

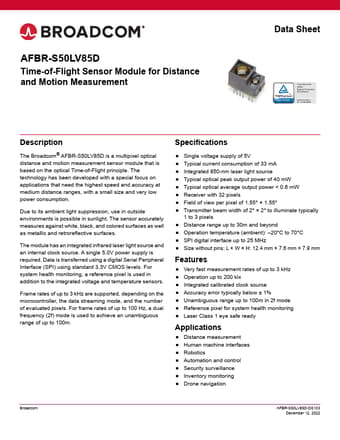

AFBR-S50LV85D Datasheet Preview — This datasheet PDF includes multiple part numbers: AFBR-S50LV85D, AFBR-S50LV85D0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AFBR-S50LV85D, AFBR-S50LV85D0
Manufacturer	Broadcom
File Size	953.77 KB
Description	Time-of-Flight Sensor
Datasheet	AFBR-S50LV85D0-Broadcom.pdf
Note	This datasheet PDF includes multiple part numbers: AFBR-S50LV85D, AFBR-S50LV85D0. Please refer to the document for exact specifications by model.

AFBR-S50LV85D Product details

Description

The Broadcom® AFBR-S50LV85D is a multipixel optical distance and motion measurement sensor module that is based on the optical Time-of-Flight principle.

Features

Very fast measurement rates of up to 3 kHz.
Operation up to 200 klx.
Integrated calibrated clock source.
Accuracy error typically below ± 1%.
Unambiguous range up to 100m in 2f mode.
Reference pixel for system health monitoring.
Laser Class 1 eye safe ready.
