AFBR-2408Z - DC-50MBd Miniature Link Fiber Optic Receiver

Name: AFBR-2408Z
SKU: AFBR-2408Z-930965

Avago

📥 Download Datasheet

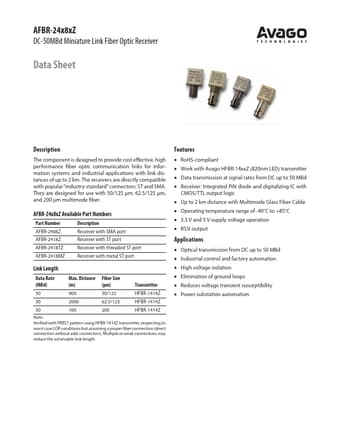

AFBR-2408Z Datasheet Preview — Preview of AFBR-2408Z PDF

Datasheet Details

Part number	AFBR-2408Z
Manufacturer	Avago
File Size	145.83 KB
Description	DC-50MBd Miniature Link Fiber Optic Receiver
Datasheet	AFBR-2408Z-Avago.pdf

AFBR-2408Z Product details

Description

The component is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2 km.

Features

RoHS-compliant.
Work with Avago HFBR-14xxZ (820nm LED) transmitter.
Data transmission at signal rates from DC up to 50 MBd.
Receiver: Integrated PIN diode and digitalizing IC with CMOS/TTL output logic.
Up to 2 km distance with Multimode Glass Fiber Cable.
Operating temperature range of -40°C to +85°C.
3.3 V and 5 V supply voltage operation.
RSSI output.
