AFBR-2419TZ - 50MBd Miniature Link Fiber Optic Receiver

Download the AFBR-2419TZ datasheet PDF (AFBR-24x9xZ included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 50mbd miniature link fiber optic receiver.

Description

The AFBR-24x9Z series components provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 3 km.

The receivers are directly compatible with popular “industry-standard” connectors: ST® and SMA.

Features

  • RoHS-compliant.
  • Works with Avago HFBR-14xxZ (820nm LED) and HFBR1712TZ (850nm VCSEL) transmitters.
  • Data transmission at signal rates from 100 kBd up to 50 MBd.
  • Receiver: Integrated PIN diode and digitalizing IC with CMOS/TTL output logic.
  • Up to 3 km distance with Multimode Glass Fiber Cable.
  • Operating temperature range of -40°C to +85°C.
  • Compatible with 10Base-FL standard.
  • 3.3 V and 5 V supply voltage operation www. D.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AFBR-24x9xZ_Avago.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AFBR-2419TZ
Manufacturer Avago
File Size 330.64 KB
Description 50MBd Miniature Link Fiber Optic Receiver
Datasheet download datasheet AFBR-2419TZ Datasheet

📁 Similar Datasheet

  • AFBR-2419TZ - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2419MZ - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2419Z - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2418MZ - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2418TZ - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2418Z - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2408Z - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2409Z - Miniature Link Fiber Optic Components (Broadcom)
  • AFBR-2529Z - DC-50MBd Versatile Link Fiber Optic Transmitter/Receiver (Broadcom)
  • AFBR-2539Z - DC-50MBd Versatile Link Fiber Optic Transmitter/Receiver (Broadcom)
Other Datasheets by Avago
  • AFBR-2419MZ - 50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2419Z - 50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2418MZ - DC-50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2418TZ - DC-50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2418Z - DC-50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2408Z - DC-50MBd Miniature Link Fiber Optic Receiver
  • AFBR-2409Z - 50MBd Miniature Link Fiber Optic Receiver
  • AFBR-24x9xZ - 50MBd Miniature Link Fiber Optic Receiver

Full PDF Text Transcription

Click to expand full text

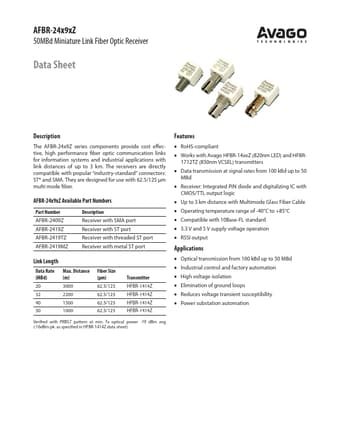

AFBR-24x9xZ 50MBd Miniature Link Fiber Optic Receiver Data Sheet Description The AFBR-24x9Z series components provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 3 km. The receivers are directly compatible with popular “industry-standard” connectors: ST® and SMA. They are designed for use with 62.5/125 µm multi mode fiber.
