Part number MQ10
Manufacturer Bel Fuse
File Size 240.72 KB
Description Quick Acting Micro Fuse
Datasheet download datasheet MQ10 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MQ1080VP High Power RF LDMOS FET Innogration
MQ1090VP High Power RF LDMOS FET Innogration
MQ1270VP High Power RF LDMOS FET Innogration
MQ131 Semiconductor Sensor for Ozone Henan Hanwei
MQ131 Semiconductor gas sensor Winsen

Other Datasheets by Bel Fuse

Part Number Description
MQ100 (MQ Series) Quick Acting Micro Fuse
MQ1 Quick Acting Micro Fuse
MQ1.5 Quick Acting Micro Fuse
MQ12 Quick Acting Micro Fuse
MQ125 (MQ Series) Quick Acting Micro Fuse

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

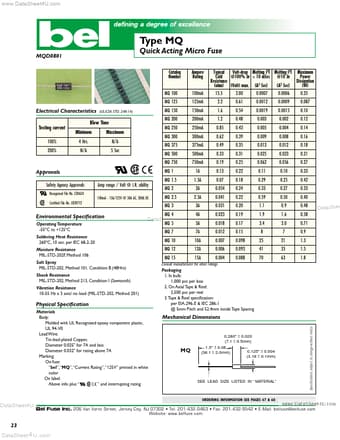

www.DataSheet4U.com Type MQ MQD0801 Quick Acting Micro Fuse Catalog Number Ampere Rating Typical Volt-drop Melting I2T Melting I2T Maximum Cold @100% In < 10 mSec @10 In Power Resistance Dissipation 2 2 (ohm) (Volt) max. (A Sec) (A Sec) (W) MQ 100 MQ 125 MQ 150 MQ 200 MQ 250 MQ 300 MQ 375 MQ 500 MQ 750 MQ 1 MQ 1.5 MQ 2 MQ 2.5 MQ 3 MQ 4 100mA 125mA 150mA 200mA 250mA 300mA 375mA 500mA 750mA 1A 1.5A 2A 2.5A 3A 4A 5A 7A 10A 12A 15A 15.5 2.2 1.6 1.2 0.85 0.62 0.49 0.33 0.19 0.13 0.07 0.054 0.041 0.031 0.023 0.018 0.012 0.007 0.006 0.004 3.00 0.61 0.54 0.48 0.43 0.39 0.35 0.31 0.25 0.22 0.18 0.24 0.22 0.20 0.19 0.17 0.15 0.098 0.093 0.088 0.0007 0.0012 0.0019 0.003 0.005 0.009 0.013 0.025 0.062 0.11 0.29 0.33 0.59 1.1 1.9 3.4 8 25 41 70 0.0006 0.0009 0.0015 0.002 0.004 0.008 0.012 0.
