SRP5030TA-R22M, SRP5030TA-R10Y - Shielded Power Inductors

Name: SRP5030TA-R22M
SKU: SRP5030TA-R22M-1408310

BOURNS

The SRP5030TA-R22M by BOURNS is a Shielded Power Inductors. Below is the official datasheet preview.

Datasheet Details

Part number	SRP5030TA-R22M, SRP5030TA-R10Y
Manufacturer	BOURNS
File Size	601.32 KB
Description	Shielded Power Inductors
Datasheet	SRP5030TA-R10Y-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: SRP5030TA-R22M, SRP5030TA-R10Y. Please refer to the document for exact specifications by model.

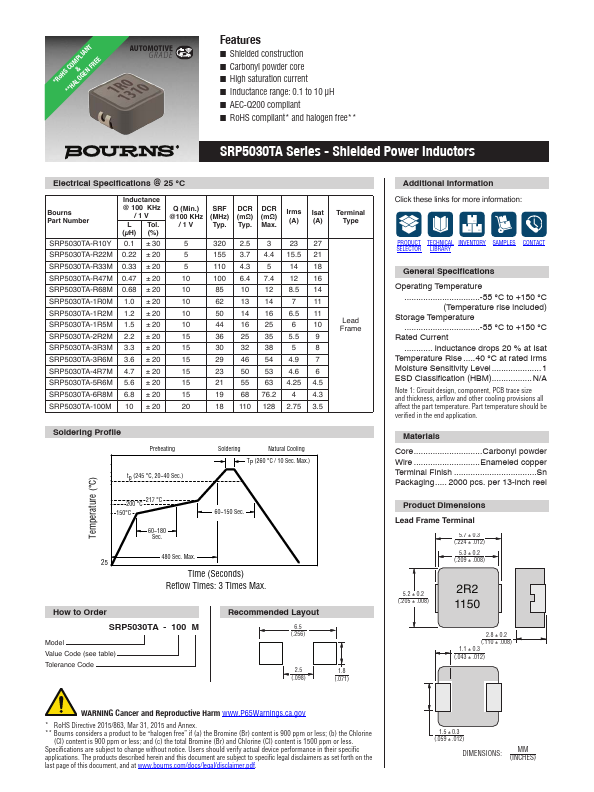

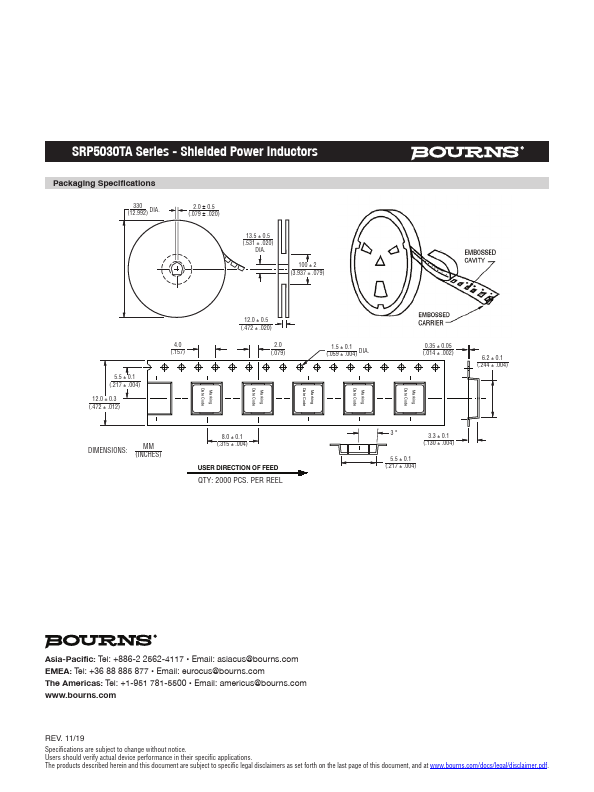

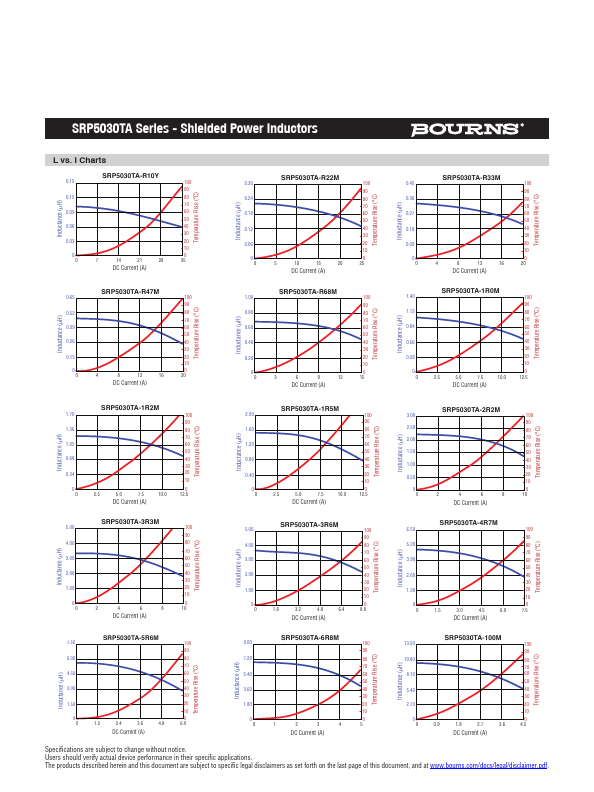

Additional preview pages of the SRP5030TA-R22M datasheet.

n Shielded construction n Carbonyl powder core n High saturation current n Inductance range: 0.1 to 10 µH n AEC-Q200 compliant n RoHS compliant.
and halogen free.
SRP5030TA Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number Inductance @ 100 KHz /1V L Tol. Q (Min. ) @100 KHz /1V (MSTLyREHpAFDz. )FREE(DTmyCWpR. ) DCR (mW) Max. Irms (A) Isat (A) (µH) (%) Terminal Type SRP5030TA-R10Y 0.1 ± 30 5 320 2.5 3 23 27 SRP5030TA-R22M 0.22 ± 20 5.
