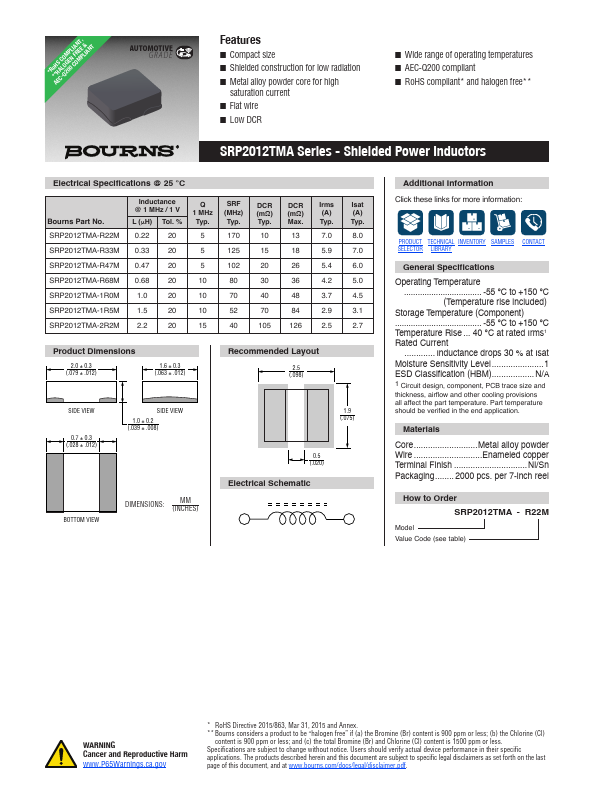

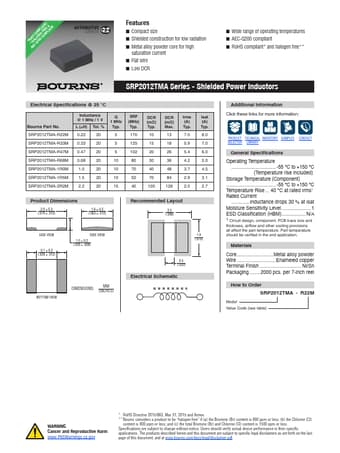

SRP2012TMA Shielded Power Inductors

SRP2012TMA Description

*Ro *AH *HESACCL-OQOM2G0EP0NLICFAORNMETEP, L&IANT AUTOMOTIVE GRADE .

SRP2012TMA Features

* n Compact size n Shielded construction for low radiation n Metal alloy powder core for high saturation current n Flat wire n Low DCR n Wide range of operating temperatures n AEC-Q200 compliant n RoHS compliant
* and halogen free
* SRP2012TMA Series - Shielded Power Inductors Electrical

SRP2012TMA Applications

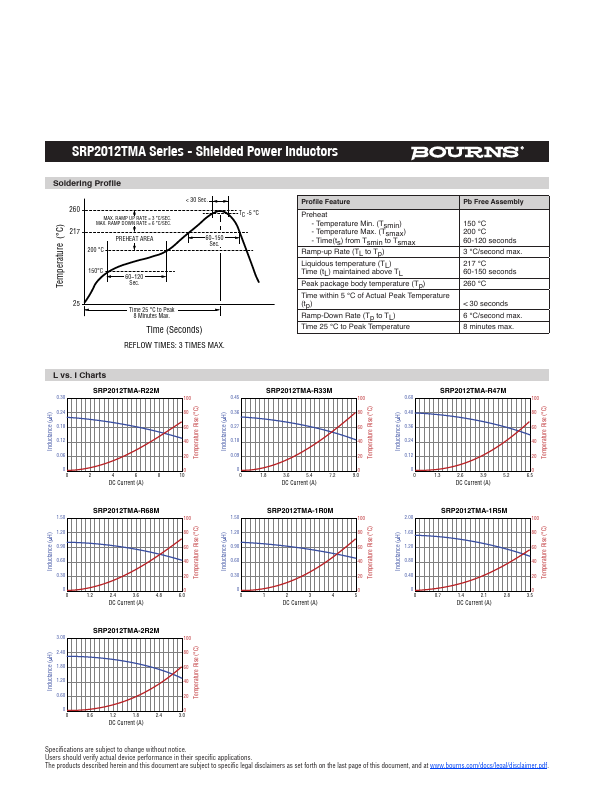

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SRP2012TMA Series - Shielded Power Inductors Soldering Profile 260 217 MAX. RAMP UP RATE = 3 °C/SEC. MAX. RA

📥 Download Datasheet

Preview of SRP2012TMA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRP2012TMA
Manufacturer
BOURNS
File Size
676.62 KB
Datasheet
SRP2012TMA-BOURNS.pdf
Description
Shielded Power Inductors
