BL24S64 - 64Kbits EEPROM

BL24S64 Description

BL24S64 64Kbits (8,192×8) .
The BL24S64 provides 65536 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 8192 words of 8 bits eac.

BL24S64 Features

* Compatible with all I2C bidirectional data transfer protocol
* Memory array:
* 64 Kbits (8 Kbytes) of EEPROM
* Page size: 32 bytes
* Single supply voltage and high speed:
* 1 MHz （1.7V） Random and sequential Read modes
* Write:
* Byte Write within 3

BL24S64 Applications

* where low-power and low-voltage operation are essential. Pin Configuration WLCSP4 12 A Vcc Vss B SCL SDA Marking side (top vie

📥 Download Datasheet

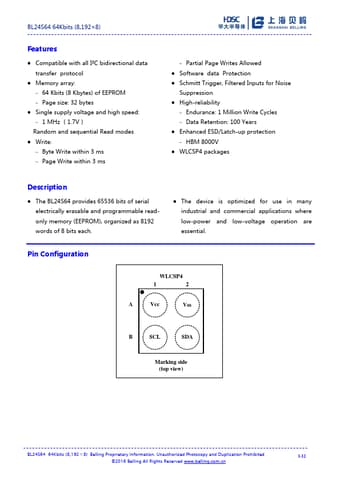

Preview of BL24S64 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL24S64
Manufacturer
BELLING
File Size
404.62 KB
Datasheet
BL24S64-BELLING.pdf
Description
64Kbits EEPROM
