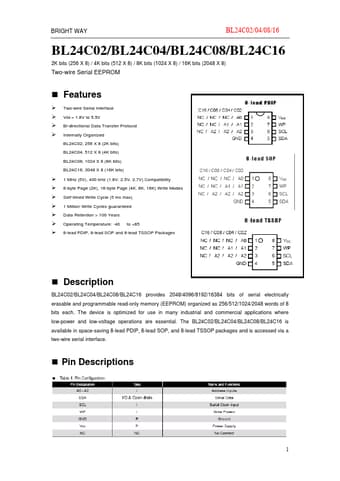

Description
BL24C02/BL24C04/BL24C08/BL24C16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each.
Features
- Two-wire Serial Interface VCC = 1.8V to 5.5V Bi-directional Data Transfer Protocol Internally Organized BL24C02, 256 X 8 (2K bits) BL24C04, 512 X 8 (4K bits) BL24C08, 1024 X 8 (8K bits) BL24C16, 2048 X 8 (16K bits) 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility 8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes Self-timed Write Cycle (5 ms max) 1 Million Write Cycles guaranteed Data Retention > 100 Years Operating Temperature: -40 to +85 8-lead PDIP, 8-lead SOP and 8-lead TSSOP Packa.
