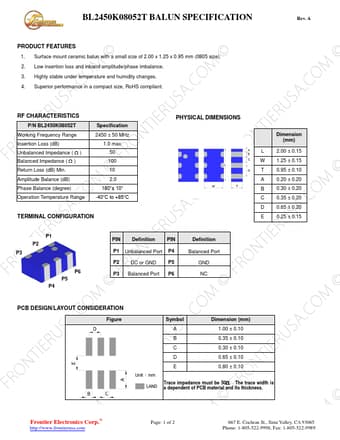

BL2450K08052T BALUN SPECIFICATION
Rev. A
PRODUCT FEATURES 1. Surface mount ceramic balun with a small size of 2.00 x 1.25 x 0.95 mm (0805 size). 2. Low insertion loss and inband amplitude/phase imbalance. 3. Highly stable under temperature and humidity changes. 4. Superior performance in a compact size, RoHS compliant.
RF CHARACTERISTICS P/N BL2450K08052T
Working Frequency Range Insertion Loss (dB) Unbalanced Impedance ( Ω ) Balanced Impedance ( Ω ) Return Loss (dB) Min. Amplitude Balance (dB) Phase Balance (degree) Operation Temperature Range
Specification 2450 ± 50 MHz
1.0 max 50 100 10 2.
