AV3843A, AV3842A (AV3842A / AV3843A) LINEAR INTEGRATED CIRCUIT

AV3843A Description

@vic AV3842A / 3843A LINEAR INTEGRATED CIRCUIT CURRENT MODE PWM CONTROL CIRCUITS .
The @vic AV3842A/3843A provide the necessary functions to implement off-line or DC to DC fixed frequency current mode , controlled switching circuits.

AV3843A Features

* Low external part count.
* Low start up current ( Typical 0.12mA )
* Automatic feed forward compensation
* Pulse-by-Pulse current limiting
* Under-voltage lockout with hysteresis
* Double pulse Suppression
* High current totem pole output to drive MOSFET directly
* Internal

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AV3843A, AV3842A. Please refer to the document for exact specifications by model.

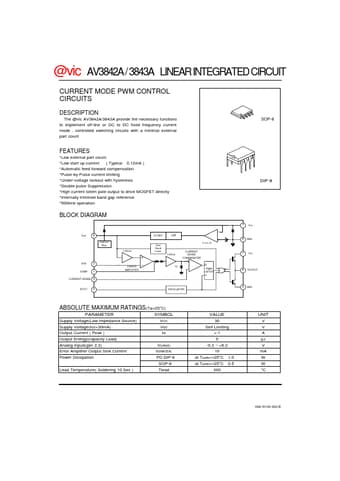

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AV3843A, AV3842A
Manufacturer
Avic Technology
File Size
118.84 KB
Datasheet
AV3842A_AvicTechnology.pdf
Description
(AV3842A / AV3843A) LINEAR INTEGRATED CIRCUIT
Note
This datasheet PDF includes multiple part numbers: AV3843A, AV3842A.
Please refer to the document for exact specifications by model.
