AV3169, AV3168 Video Encoder

AV3169 Description

AVS Technology .
The AV3168 is a mixed signal CMOS monolithic device.

AV3169 Features

* Fully CCIR 624 performance compliance NTSC and PAL (B,D,G,H,I,M and N) video encoder
* Composite, S-video, Component Y/Cb/Cr (Sony, Matsushita, and SMPTE) or RGB output.
* Triple 10-bit digital to analog converter.
* Accepts 27 Mhz multiplexed 8-bit digital video in

AV3169 Applications

* The video encoder converts CCIR 601 8-bit multiplexed digital video into RGB, component YCbCr, encoded NTSC or PAL (BDGHIMN) signals. It contains three 10-bit DACs to support simultaneous S-video and composite video; or component video display. Brightness and Contrast control are also provided. The

📥 Download Datasheet

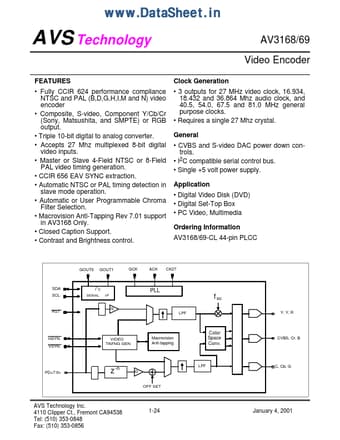

AV3169 Datasheet Preview — This datasheet PDF includes multiple part numbers: AV3169, AV3168. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: AV3169, AV3168
Manufacturer: AVS
File Size: 169.69 KB
Datasheet: AV3168_AVS.pdf
Description: Video Encoder
Note: This datasheet PDF includes multiple part numbers: AV3169, AV3168.
Please refer to the document for exact specifications by model.
