AD1674, AD1 - 12-Bit 100 kSPS A/D Converter

Analog Devices

The AD1674 by Analog Devices is a 12-Bit 100 kSPS A/D Converter. Below is the official datasheet preview.

📥 Download Datasheet

AD1674 12-Bit 100 kSPS A/D Converter by Analog Devices - Datasheet Preview — Official preview page of the **AD1674** 12-Bit 100 kSPS A/D Converter datasheet (Analog Devices).

Datasheet Details

Part number	AD1674, AD1
Manufacturer	Analog Devices
File Size	255.14 KB
Description	12-Bit 100 kSPS A/D Converter
Datasheet	AD1-674.pdf
Note	This datasheet PDF includes multiple part numbers: AD1674, AD1. Please refer to the document for exact specifications by model.

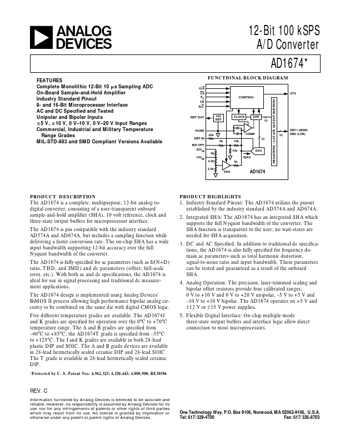

Additional preview pages of the AD1674 datasheet.

AD1674 Product details

Description

PRODUCT HIGHLIGHTS The AD1674 is a complete, multipurpose, 12-bit analog-todigital converter, consisting of a user-transparent onboard sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface.The AD1674 is pin compatible with the industry standard AD574A and AD674A, but includes a sampling function while delivering a faster conversion rate.The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist b

Features

Complete Monolithic 12-Bit 10 ␮ s Sampling ADC On-Board Sample-and-Hold Amplifier Industry Standard Pinout 8- and 16-Bit Microprocessor Interface AC and DC Specified and Tested Unipolar and Bipolar Inputs ؎5 V, ؎ 10 V, 0 V.
10 V, 0 V.
20 V Input Ranges Commercial, Industrial and Military Temperature Range Grades MIL-STD-883 and SMD Compliant Versions Available 12/8 CS A 0 CE R/C REF OUT 10V REF CLOCK 12-Bit 100 kSPS A/D Converter AD1674.
