AD161 - NPN Transistor

The AD161 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

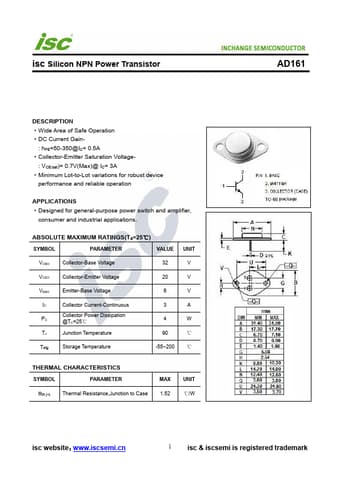

Official preview page of the AD161 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number AD161
Manufacturer INCHANGE
File Size 188.23 KB
Description NPN Transistor
Datasheet download datasheet AD161-INCHANGE.pdf
Additional preview pages of the AD161 datasheet.

AD161 Product details

Description

Wide Area of Safe Operation DC Current Gain- : hFE=50-350@IC= 0.5A Collector-Emitter Saturation Voltage- : VCE(sat)= 0.7V(Max)@ IC= 3A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general-purpose power switch and amplifier, consumer and industrial applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 32 V VCEO Collector-Emitter Voltage 20 V VEBO
