AD1671, AD1 - Complete 12-Bit 1.25 MSPS Monolithic A/D Converter

Analog Devices

The AD1671 by Analog Devices is a Complete 12-Bit 1.25 MSPS Monolithic A/D Converter. Below is the official datasheet preview.

📥 Download Datasheet

AD1671 Complete 12-Bit 1.25 MSPS Monolithic A/D Converter by Analog Devices - Datasheet Preview — Official preview page of the **AD1671** Complete 12-Bit 1.25 MSPS Monolithic A/D Converter datasheet (Analog Devices).

Datasheet Details

Part number	AD1671, AD1
Manufacturer	Analog Devices
File Size	394.34 KB
Description	Complete 12-Bit 1.25 MSPS Monolithic A/D Converter
Datasheet	AD1-671.pdf
Note	This datasheet PDF includes multiple part numbers: AD1671, AD1. Please refer to the document for exact specifications by model.

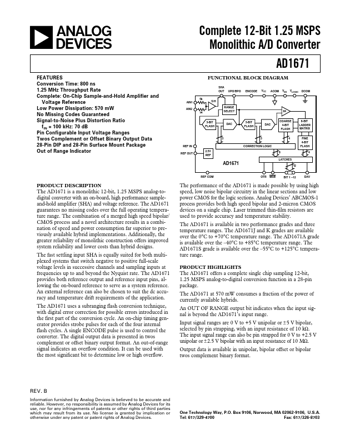

Additional preview pages of the AD1671 datasheet.

AD1671 Product details

Description

The AD1671 is a monolithic 12-bit, 1.25 MSPS analog-todigital converter with an on-board, high performance sampleand-hold amplifier (SHA) and voltage reference.

Features

Conversion Time: 800 ns 1.25 MHz Throughput Rate Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference Low Power Dissipation: 570 mW No Missing Codes Guaranteed Signal-to-Noise Plus Distortion Ratio fIN = 100 kHz: 70 dB Pin Configurable Input Voltage Ranges Twos Complement or Offset Binary Output Data 28-Pin DIP and 28-Pin Surface Mount Package Out of Range Indicator AIN1 AIN2 Complete 12-Bit 1.25 MSPS Monolithic A/D Converter AD1671.
