AOZ5517MQI High-Performance DrMOS Power Module

AOZ5517MQI Description

AOZ5517MQI High-Current, High-Performance DrMOS Power Module General .
The AOZ5517MQI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5517MQI Features

* are provided making the AOZ5517MQI a highly versatile power module. The bootstrap diode is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, kee

AOZ5517MQI Applications

* Notebook computers
* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming console Typical Application Circuit FCCM PWM Controller PWM Driver Logic and Delay VCC CVCC 5V VIN BOOT HS Driver CBO OT PHASE VSWH LS Driver GL PVCC

📥 Download Datasheet

Preview of AOZ5517MQI PDF

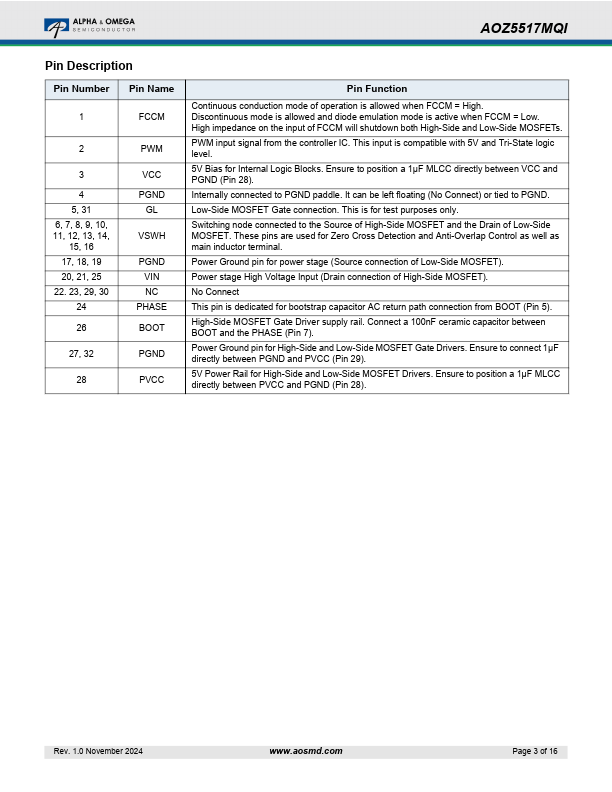

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOZ5517MQI
Manufacturer
Alpha & Omega Semiconductors
File Size
792.74 KB
Datasheet
AOZ5517MQI-AlphaOmegaSemiconductors.pdf
Description
High-Performance DrMOS Power Module
