AOZ5311NQI-04 High-Performance DrMOS Power Module

AOZ5311NQI-04 Description

AOZ5311NQI-04 High-Current, High-Performance DrMOS Power Module General .
The AOZ5311NQI-04 is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5311NQI-04 Features

* are provided making the AOZ5311NQI-04 a highly versatile power module. The boot- strap switch is integrated in the driver. The LowSide MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve lightload performance. The pin-out is also optimized for low parasitics,

AOZ5311NQI-04 Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming console Typical Application Circuit VCC VIN BOOT THWN PWM Controller DISB# SMOD# Driver Logic and Delay PWM AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT P

📥 Download Datasheet

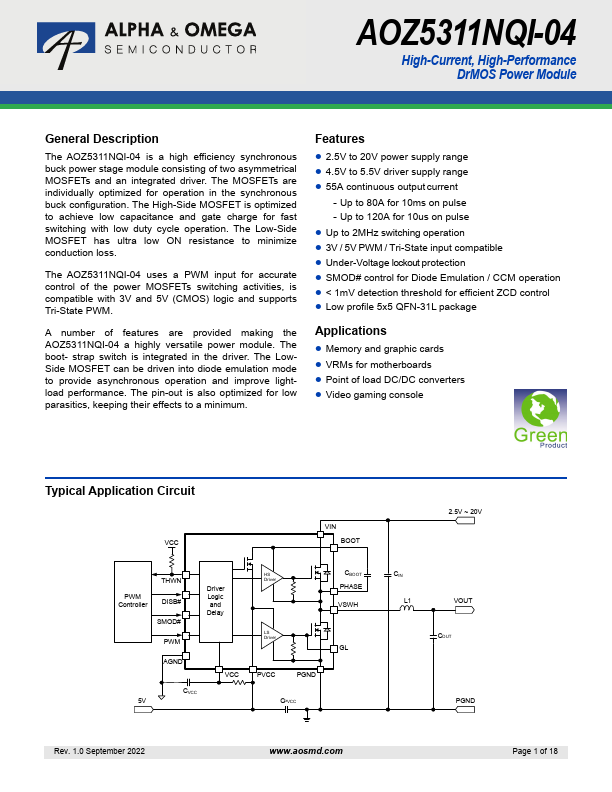

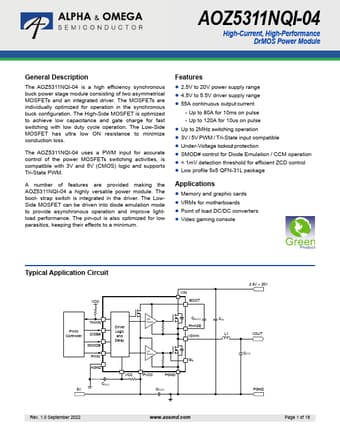

Preview of AOZ5311NQI-04 PDF

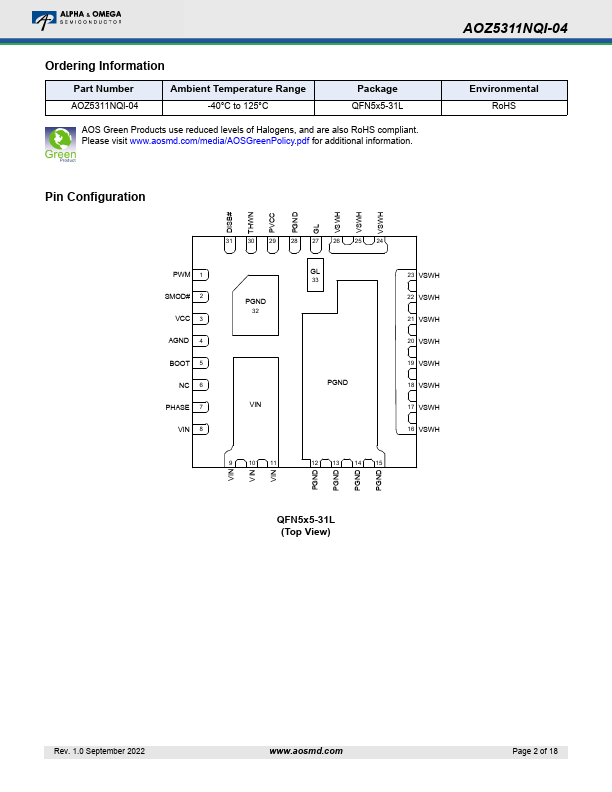

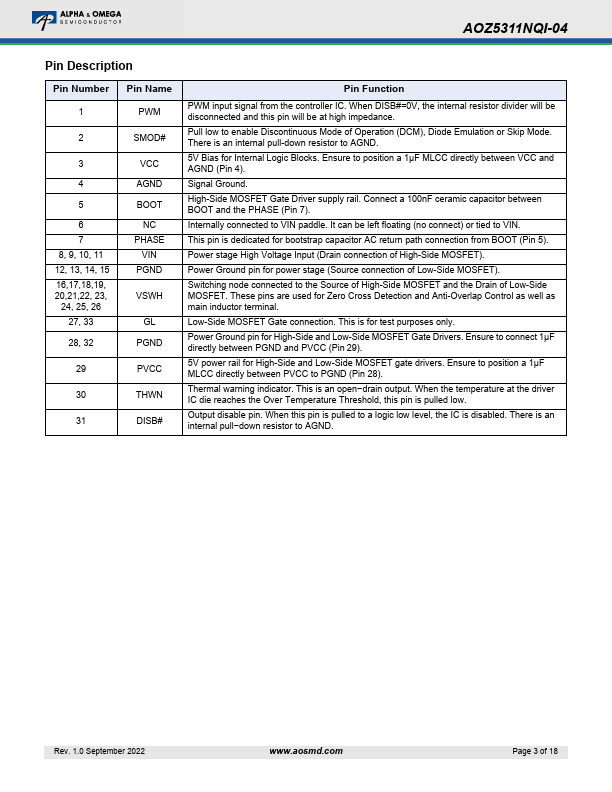

datasheet Preview Page 2 datasheet Preview Page 3
