AOZ5118QI-01, AOZ5118QI High-Performance DrMOS Power Module

AOZ5118QI-01 Description

AOZ5118QI-01 High-Current, High-Performance DrMOS Power Module General .
The AOZ5118QI-01 is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5118QI-01 Features

* are provided making the AOZ5118QI-01 a highly versatile power module. The boot- strap switch is integrated in the driver. The LowSide MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve lightload performance. The pin-out is also optimized for low parasitics,

AOZ5118QI-01 Applications

* Notebook computers
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles Typical Application Circuit VIN BOOT PWM Controller DISB# SMOD# PWM Driver Logic and Delay AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT PHASE VSWH GL 4.5

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AOZ5118QI-01, AOZ5118QI. Please refer to the document for exact specifications by model.

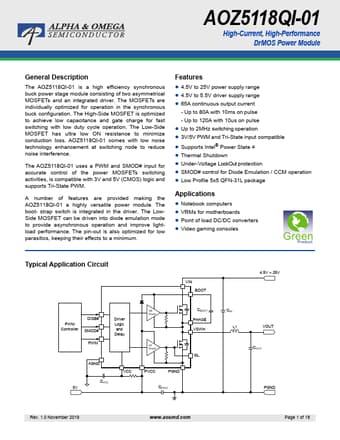

datasheet Preview Page 2 datasheet Preview Page 3
