AOZ5039QI 40A Continuous Current DrMOS Power Module

AOZ5039QI Description

AOZ5039QI 40A Continuous Current DrMOS Power Module General .
The AOZ5039QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5039QI Features

* are provided making the AOZ5039QI a highly versatile power module: The bootstrap diode is integrated in the driver. The low side MOSFET can be driven into diode emulation mode to provide asynchronous operation when required. The pinout is optimized for low inductance routing of the converter, keepin

AOZ5039QI Applications

* Servers
* Notebook computers
* VRMs for motherboards
* Point of load DC/DC converters
* Memory and graphic cards
* Video gaming console Typical Application Circuit VIN BOOT 4.5V
* 25V Controller FCCM PWM PGND Drive Logic and Delay CBOOT CVIN VSWH GL L VOU

📥 Download Datasheet

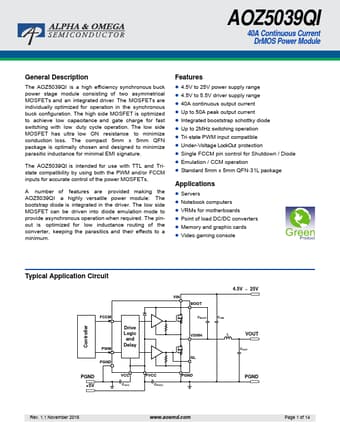

Preview of AOZ5039QI PDF
