AOZ23655QI 28V/18A VID Control Synchronous Regulator

AOZ23655QI Description

AOZ23655QI 28V/18A VID Control Synchronous EZBuckTM Regulator General .
The AOZ23655QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulators capable of operation from a 4V to 28V input bus.

AOZ23655QI Features

* Wide input voltage range - 4V to 28V
* Support Intel ITDC up to 18A
* Support Intel ICCMAX up to 45A
* 2 bits programmable output voltage adjustable from 0V to 1.8V
* Integrated high performance trench MOSFETs capable of : - High peak current - Up to 90A wit

AOZ23655QI Applications

* Portable computers
* Compact desktop PCs
* Servers
* Networking equipment Green Product Rev. 1.1 May 2023 www. aosmd. com Page 1 of 21 Typical Application IMON 3rd Order Thermal Compensation Application (Thermal Compensation only IMON Function) RTON R2 100kΩ R

📥 Download Datasheet

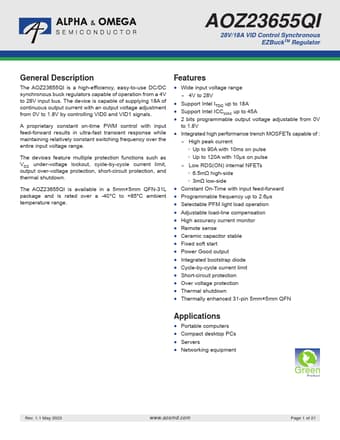

Preview of AOZ23655QI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOZ23655QI
Manufacturer
Alpha & Omega Semiconductors
File Size
2.35 MB
Datasheet
AOZ23655QI-AlphaOmegaSemiconductors.pdf
Description
28V/18A VID Control Synchronous Regulator
