AOZ2152TQI-19 28V/6A Synchronous Regulator

AOZ2152TQI-19 Description

AOZ2152TQI-19 28V/6A Synchronous EZBuckTM Regulator General .
The AOZ2152TQI-19 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

AOZ2152TQI-19 Features

* multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2152TQI-19 is available in a 3mm×3mm QFN18L package and is rated over a -40°C to +85°C ambient temperature range. Fea

AOZ2152TQI-19 Applications

* Compact desktop PCs
* Graphics cards
* Set-top boxes
* LCD TVs
* Cable modems
* Point-of-load DC/DC converters
* Telecom/Networking/Datacom equipment Rev. 2.0 September 2022 www. aosmd. com Page 1 of 17 Typical Application 5V R3 100kΩ Power Good C4 4.7μF Off On C

📥 Download Datasheet

Preview of AOZ2152TQI-19 PDF

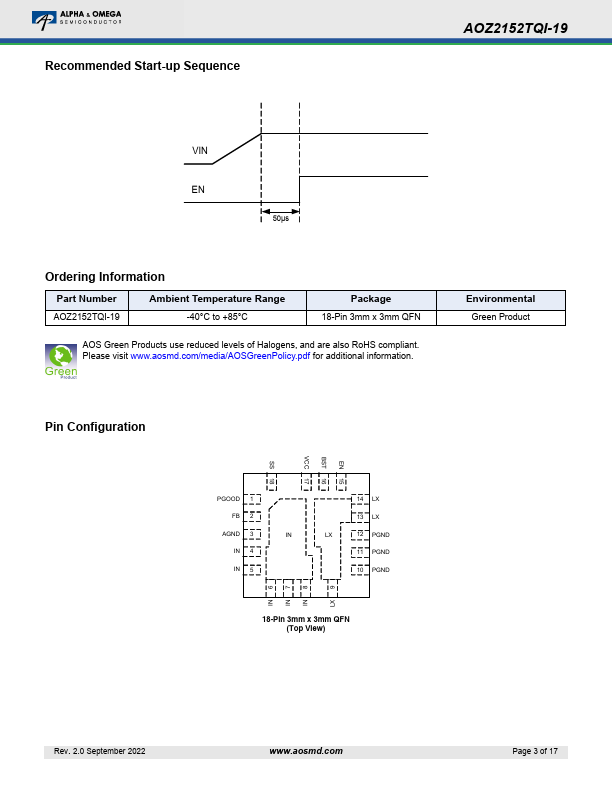

datasheet Preview Page 2 datasheet Preview Page 3
