AOD409 60V P-Channel MOSFET

AOD409 Description

AOD409/AOI409 60V P-Channel MOSFET General .
Trench Power MV MOSFET technology. Low RDS(ON). Low Gate Charge. Optimized for fast-switching applications Produ.

AOD409 Applications

* Product Summary VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-4.5V) -60V -26A < 40mΩ < 55mΩ Applications
* Synchronus Rectification in DC/DC and AC/DC Converters
* Industrial and Motor Drive applications 100% UIS Tested 100% Rg Tested TO252 TO-251A TopView DPAK

📥 Download Datasheet

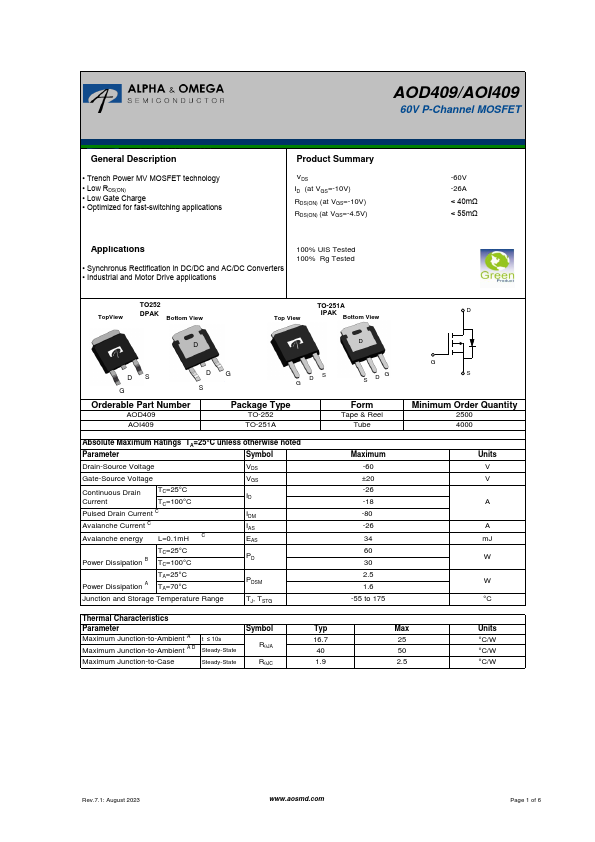

Preview of AOD409 PDF

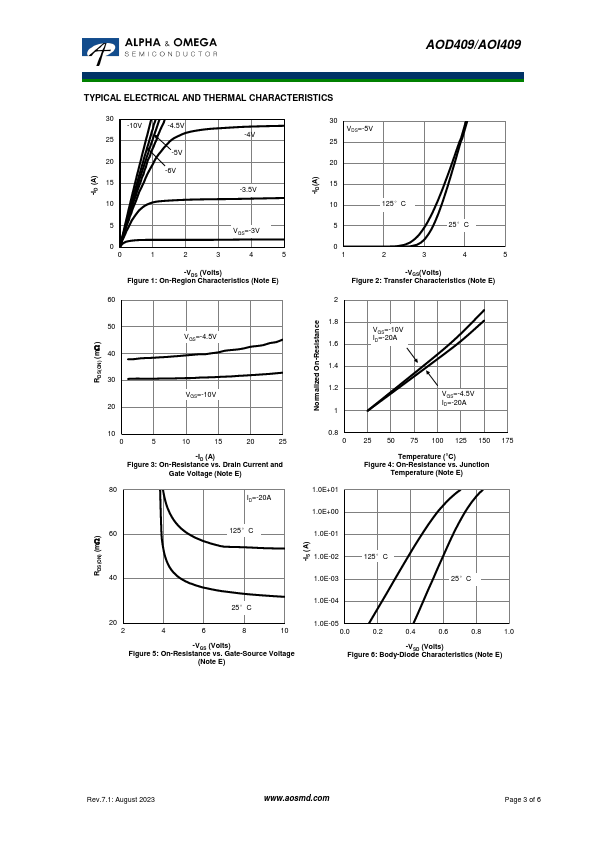

datasheet Preview Page 2 datasheet Preview Page 3
