AS4C64M16D1A-6TCN, AS4C64M16D1A-6TIN Datasheet - Alliance Semiconductor

AS4C64M16D1A-6TCN 1Gb SDRAM

AS4C64M16D1A-6TIN AS4C64M16D1A-6TCN Table 2. Pin Details Symbol Type Description CK, CK Input Differential Clock: CK and CK are differential clock inputs. All address and control input signals are sampled on the crossing of the positive edge of CK and negative edge of CK . Input and output da.

AS4C64M16D1A-6TCN Features

* Overview

* Fast clock rate: 166MHz

* Differential Clock CK & CK

* Bi-directional DQS

* DLL enable/disable by EMRS

* Fully synchronous operation

* Internal pipeline architecture

* Four internal banks, 16M x 16-bit for each bank

* Progr

AS4C64M16D1A-6TIN-AllianceSemiconductor.pdf

This datasheet PDF includes multiple part numbers: AS4C64M16D1A-6TCN, AS4C64M16D1A-6TIN. Please refer to the document for exact specifications by model.

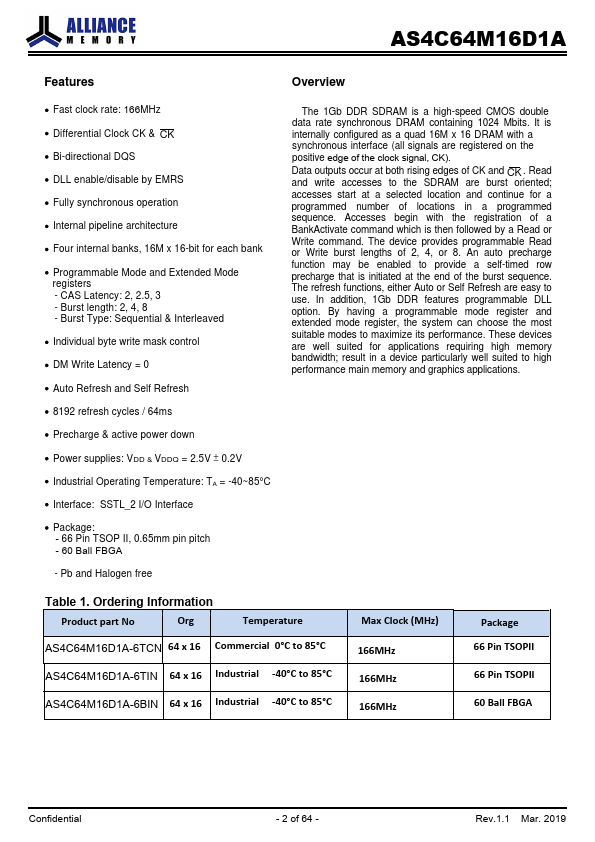

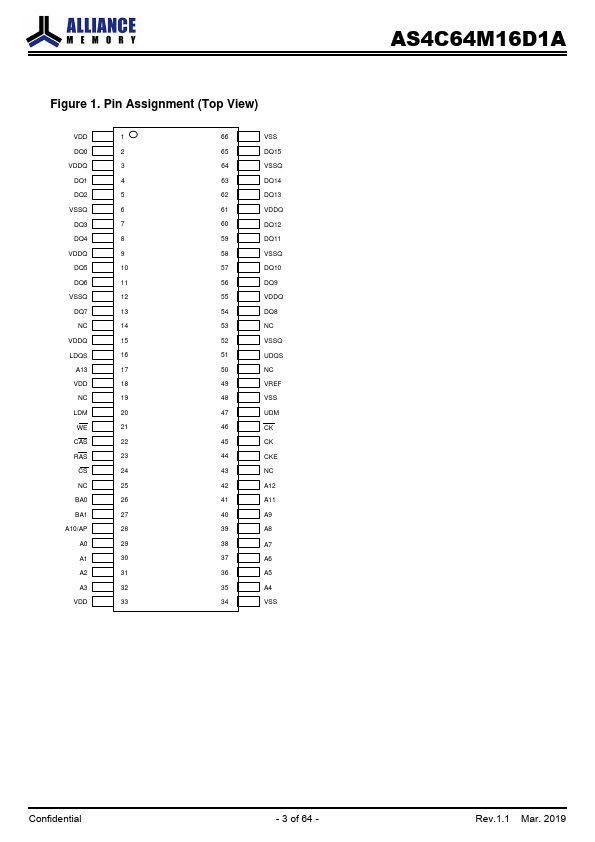

AS4C64M16D1A-6TCN Datasheet Preview Page 2 AS4C64M16D1A-6TCN Datasheet Preview Page 3

Datasheet Details

Part number:

AS4C64M16D1A-6TCN, AS4C64M16D1A-6TIN

Manufacturer:

Alliance Semiconductor

File Size:

1.82 MB

Description:

1gb sdram.

Note:

This datasheet PDF includes multiple part numbers: AS4C64M16D1A-6TCN, AS4C64M16D1A-6TIN.
Please refer to the document for exact specifications by model.
