AS4C32M16D2C-25BCN - 32M x 16 bit DDRII Synchronous DRAM

Product Overview

Alliance Semiconductor

📥 Download Datasheet

AS4C32M16D2C-25BCN 32M x 16 bit DDRII Synchronous DRAM by Alliance Semiconductor - Datasheet Preview — Datasheet preview – AS4C32M16D2C-25BCN

Datasheet Details

Part number	AS4C32M16D2C-25BCN
Manufacturer	Alliance Semiconductor
File Size	1.58 MB
Description	32M x 16 bit DDRII Synchronous DRAM
Datasheet	AS4C32M16D2C-25BCN Datasheet

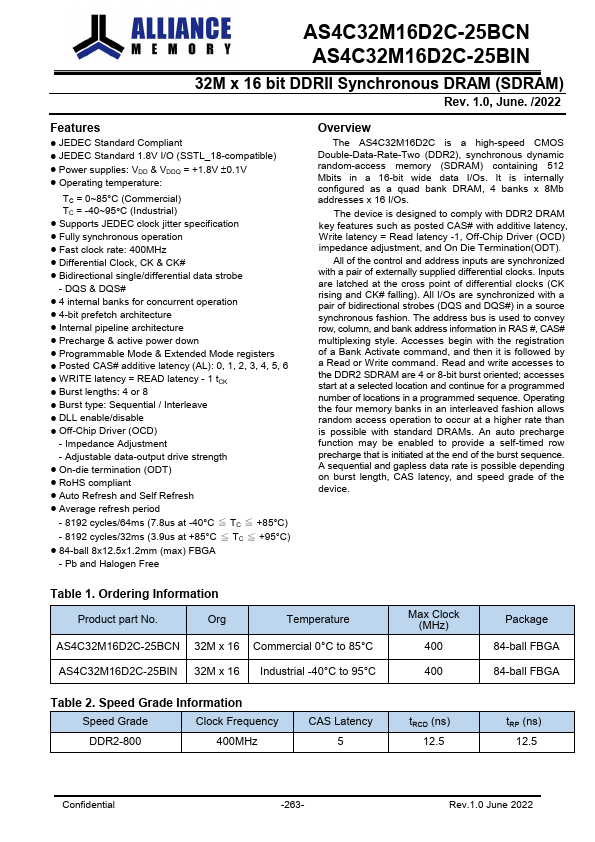

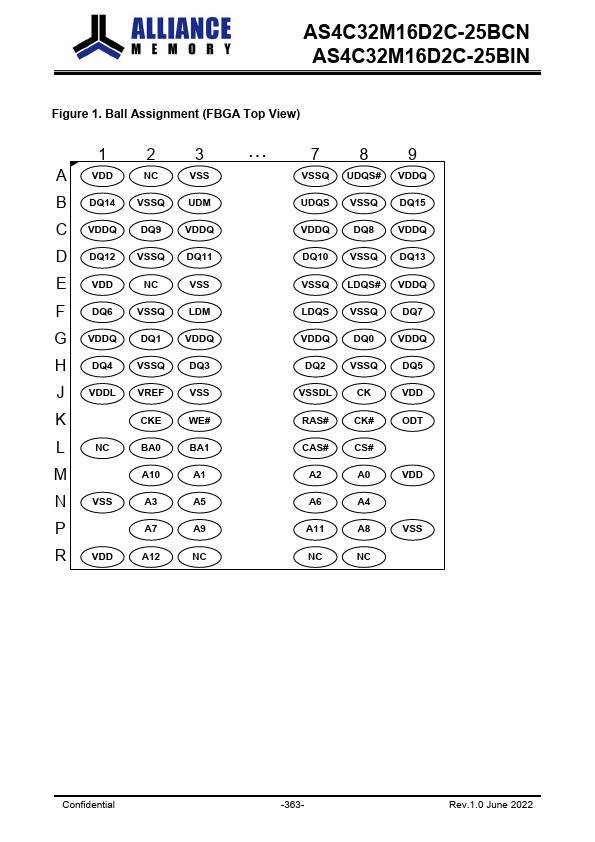

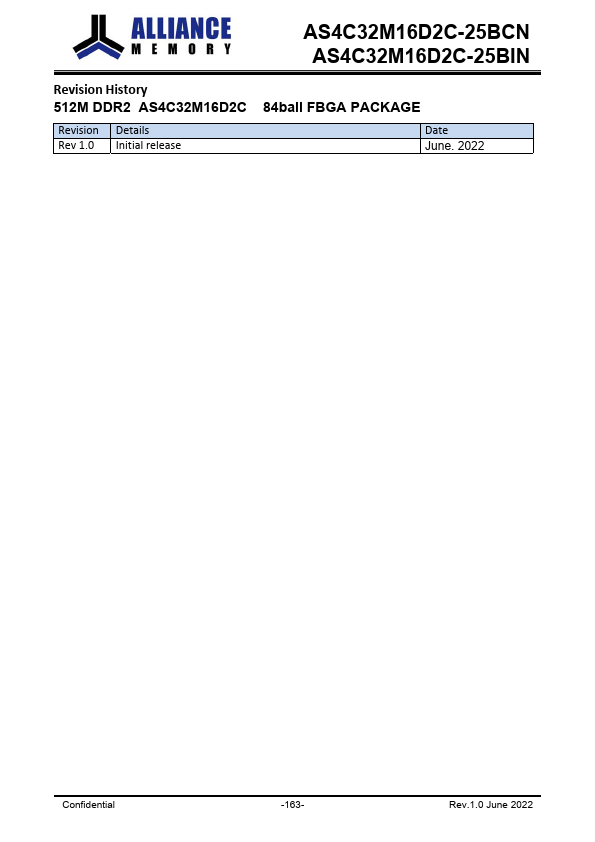

Additional preview pages of the AS4C32M16D2C-25BCN datasheet.

Product details

Features

JEDEC Standard Compliant.
JEDEC Standard 1.8V I/O (SSTL_18-compatible).
Power supplies: VDD & VDDQ = +1.8V 0.1V.
Operating temperature: TC = 0~85°C (Commercial) TC = -40~95°C (Industrial).
Supports JEDEC clock jitter specification.
Fully synchronous operation.
Fast clock rate: 400MHz.
Differential Clock, CK & CK#.
Bidirectional single/differential data strobe - DQS & DQS#.
4 internal banks for concurrent operation.
4-bit prefetch architect.
