A1469 Three-Wire True Zero-Speed Differential Peak-Detecting Sensor IC

A1469 Description

A1469 Three-Wire True Zero-Speed Differential Peak-Detecting Sensor IC with Continuous Calibration .
TheA1469 is an optimized Hall-effect sensing IC that provides a user-friendly solution for digital ring-magnet sensing, or when coupled with a magnet,.

A1469 Features

* Unique design for robustness against high-power EMC transients
* Peak detection based switching algorithm for large operating air gaps
* Minimum differential field 20 Gpk-pk
* Running mode calibration for continuous optimization
* Precise duty cycle sig

A1469 Applications

* The small device package can be easily assembled into applications for use in conjunction with a wide variety of target shapes and sizes. The integrated circuit incorporates dual Hall-effect elements with a 2.2 mm spacing and signal processing that switches in response to differential magnetic sign

📥 Download Datasheet

Preview of A1469 PDF

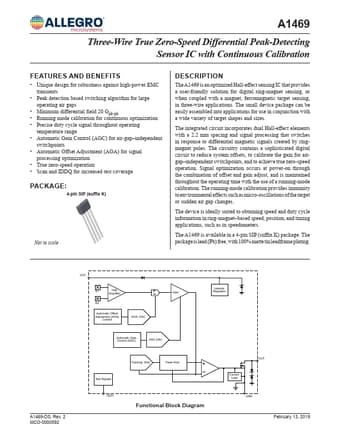

datasheet Preview Page 2 datasheet Preview Page 3
