HSMP-3800 - (HSMP-38xx / HSMP-48xx) Surface Mount PIN Diodes

Agilent

📥 Download Datasheet

HSMP-3800 Datasheet Preview — Preview of HSMP-3800 PDF

Datasheet Details

Part number: HSMP-3800
Manufacturer: Agilent
File Size: 137.08 KB
Datasheet: HSMP-3800_Agilent.pdf
Description: (HSMP-38xx / HSMP-48xx) Surface Mount PIN Diodes

HSMP-3800 Product details

Description

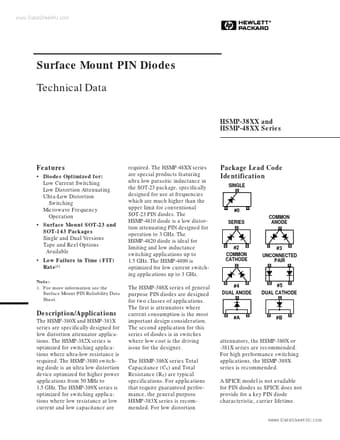

Applications The HSMP-380X and HSMP-381X series are specifically designed for low distortion attenuator applications.The HSMP-382X series is optimized for switching applications where ultra-low resistance is required.The HSMP-3880 switching diode is an ultra low distortion device optimized for higher power applications from 50 MHz to 1.5 GHz.The HSMP-389X series is optimized for switching applications where low resistance at low current and low capacitance are #A #B attenuators, the HSMP-3

Features

Diodes Optimized for: Low Current Switching Low Distortion Attenuating Ultra-Low Distortion Switching Microwave Frequency Operation.
Surface Mount SOT-23 and SOT-143 Packages Single and Dual Versions Tape and Reel Options Available.
Low Failure in Time (FIT) Rate[1] Note: 1. For more information see the Surface Mount PIN Reliability Data Sheet. required. The HSMP-48XX series are special products featuring ultra low parasitic inductance in the SOT-23 package, specific.
