HSMP-3810 - Surface Mount RF PIN Low Distortion Attenuator Diodes

AVAGO

📥 Download Datasheet

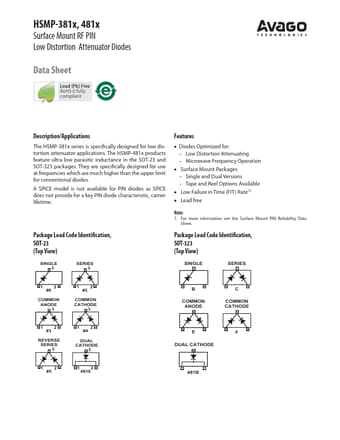

HSMP-3810 Datasheet Preview — Preview of HSMP-3810 PDF

Datasheet Details

Part number: HSMP-3810
Manufacturer: AVAGO
File Size: 110.10 KB
Datasheet: HSMP-3810-AVAGO.pdf
Description: Surface Mount RF PIN Low Distortion Attenuator Diodes

HSMP-3810 Product details

Description

Applications The HSMP-381x series is speciﬁcally designed for low distortion attenuator applications.The HSMP-481x products feature ultra low parasitic inductance in the SOT-23 and SOT-323 packages.They are speciﬁcally designed for use at frequencies which are much higher than the upper limit for conventional diodes.A SPICE model is not available for PIN diodes as SPICE does not provide for a key PIN diode characteristic, carrier lifetime.

Features

x Diodes Optimized for:.
Low Distortion Attenuating.
Microwave Frequency Operation x Surface Mount Packages.
Single and Dual Versions.
Tape and Reel Options Available x Low Failure in Time (FIT) Rate[1] x Lead free Package Lead Code Identiﬁcation, SOT-23 (Top View) Note: 1. For more information see the Surface Mount PIN Reliability Data Sheet. Package Lead Code Identiﬁcation, SOT-323 (Top View) SINGLE 3 SERIES 3 SINGLE.
