HSMP-3815, HSMP-3810 Surface Mount RF PIN Low Distortion Attenuator Diodes

AVAGO

Description

HSMP-381x, 481x Surface Mount RF PIN Low Distortion Attenuator Diodes Data Sheet .
Applications The HSMP-381x series is speciﬁcally designed for low distortion attenuator applications.

📥 Download Datasheet

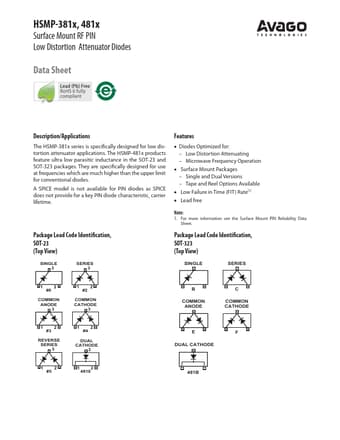

HSMP-3815 Datasheet Preview — This datasheet PDF includes multiple part numbers: HSMP-3815, HSMP-3810. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HSMP-3815, HSMP-3810
Manufacturer: AVAGO
File Size: 110.10 KB
Datasheet: HSMP-3810-AVAGO.pdf
Description: Surface Mount RF PIN Low Distortion Attenuator Diodes
Note: This datasheet PDF includes multiple part numbers: HSMP-3815, HSMP-3810.
Please refer to the document for exact specifications by model.

Features

* x Diodes Optimized for:
* Low Distortion Attenuating
* Microwave Frequency Operation x Surface Mount Packages
* Single and Dual Versions
* Tape and Reel Options Available x Low Failure in Time (FIT) Rate[1] x Lead free Package Lead Code Identiﬁcation, SOT-23 (Top Vie
