MT3422 - Synchronous Step-Down Converter

📥 Download Datasheet

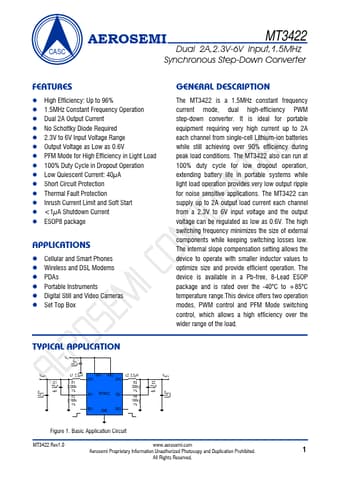

MT3422 Datasheet Preview — Preview of MT3422 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MT3422
Manufacturer	Aerosemi
File Size	317.52 KB
Description	Synchronous Step-Down Converter
Datasheet	MT3422-Aerosemi.pdf

MT3422 Product details

Description

The MT3422 is a 1.5MHz constant frequency current mode, dual high-efficiency PWM step-down converter.

Features

High Efficiency: Up to 96%.
1.5MHz Constant Frequency Operation.
Dual 2A Output Current.
No Schottky Diode Required.
2.3V to 6V Input Voltage Range.
Output Voltage as Low as 0.6V.
PFM Mode for High Efficiency in Light Load.
100% Duty Cycle in Dropout Operation.
Low Quiescent Current: 40μA.
Short Circuit Protection.
Thermal Fault Protection.
Inrush Current Limit and Soft Start.
