MT3400 - N-Channel Power MOSFET

MT Semiconductor

📥 Download Datasheet

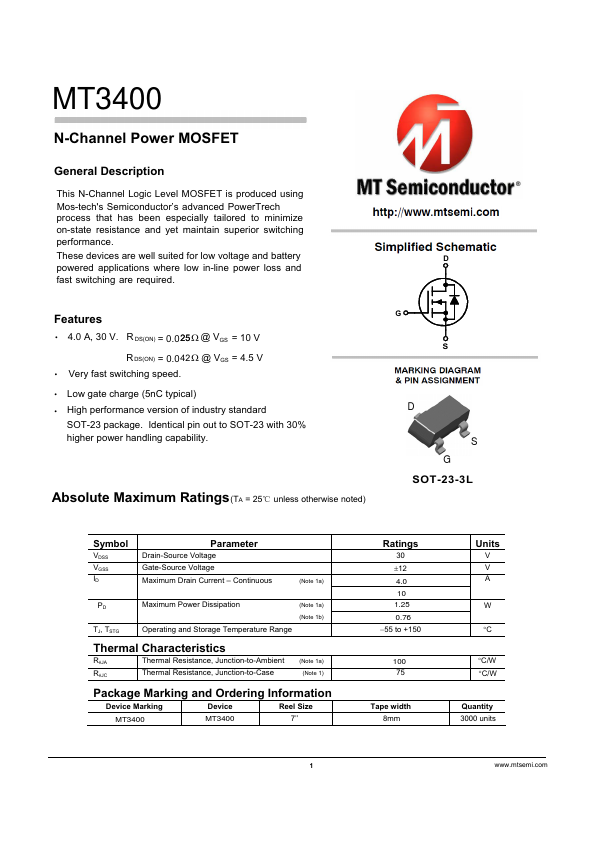

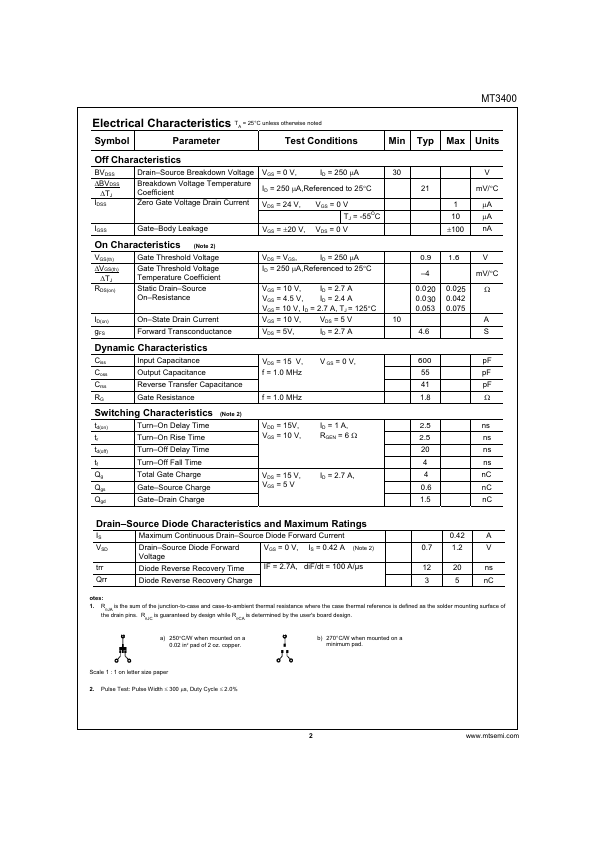

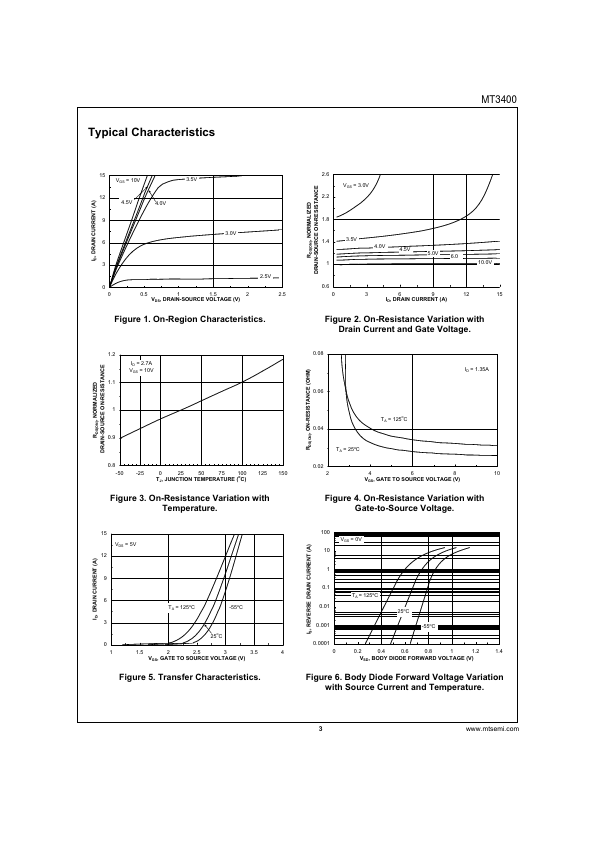

MT3400 Datasheet Preview — Preview of MT3400 PDF

Datasheet Details

Part number	MT3400
Manufacturer	MT Semiconductor
File Size	686.96 KB
Description	N-Channel Power MOSFET
Datasheet	MT3400-MTSemiconductor.pdf

MT3400 Product details

Description

This N-Channel Logic Level MOSFET is produced using pMroosc-etsescht'shaSt ehmaiscobnedeunctoers’speacdivaallnycetadiloProewdetroTremcihnimize on-state resistance and yet maintain superior switching performance.These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Features

4.0 A, 30 V. R DS(ON) = 0.025 :@ VGS = 10 V R DS(ON) = 0.042 :@ VGS = 4.5 V Very fast switching speed. Low gate charge (5nC typical) High performance version of industry standard SOT-23 package. Identical pin out to SOT-23 with 30% higher power handling capability. Absolute Maximum Ratings(TA = 25 unless otherwise noted) D G S D S G SOT-23-3L Symbol VDSS VGSS ID Parameter Drain-Source Voltage Gate-Source Voltage Maximum Drain Current.
Continuous (Note 1a) PD TJ, TST.
