MT3410L - Synchronous Step-Down Converter

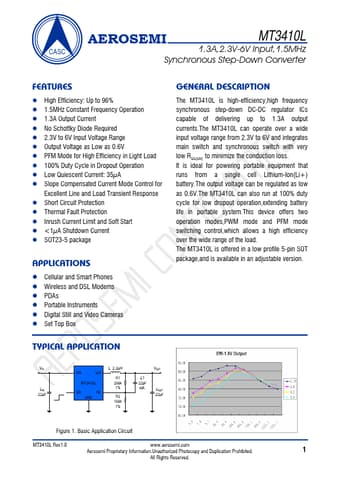

MT3410L Datasheet Preview — Preview of MT3410L PDF

Datasheet Details

Part number	MT3410L
Manufacturer	Aerosemi
File Size	326.37 KB
Description	Synchronous Step-Down Converter
Datasheet	MT3410L-Aerosemi.pdf

MT3410L Product details

Description

The MT3410L is high-efficiency,high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 1.3A output currents.The MT3410L can operate over a wide input voltage range from 2.3V to 6V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

High Efficiency: Up to 96%.
1.5MHz Constant Frequency Operation.
1.3A Output Current.
No Schottky Diode Required.
2.3V to 6V Input Voltage Range.
Output Voltage as Low as 0.6V.
PFM Mode for High Efficiency in Light Load.
100% Duty Cycle in Dropout Operation.
Low Quiescent Current: 35μA.
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Short Circuit Protection.
Thermal Fault Protection.
Inrush.
