AMS3106 - Micropower 500mA Low Noise Fast Transient Response LDO

Advanced Monolithic Systems

The AMS3106 by Advanced Monolithic Systems is a Micropower 500mA Low Noise Fast Transient Response LDO. Below is the official datasheet preview.

📥 Download Datasheet

AMS3106 Micropower 500mA Low Noise Fast Transient Response LDO by Advanced Monolithic Systems - Datasheet Preview — Official preview page of the **AMS3106** Micropower 500mA Low Noise Fast Transient Response LDO datasheet (Advanced Monolithic Systems).

Datasheet Details

Part number	AMS3106
Manufacturer	Advanced Monolithic Systems
File Size	588.84 KB
Description	Micropower 500mA Low Noise Fast Transient Response LDO
Datasheet	AMS3106_AdvancedMonolithicSystems.pdf

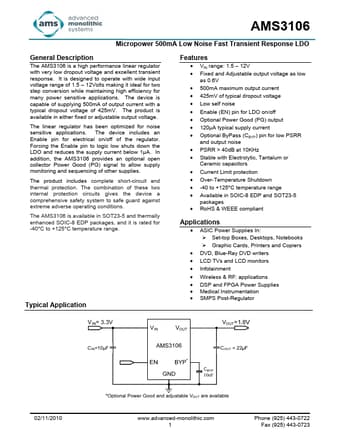

Additional preview pages of the AMS3106 datasheet.

AMS3106 Product details

Description

The AMS3106 is a high performance linear regulator with very low dropout voltage and excellent transient response. 12Volts making it ideal for two step conversion while maintaining high efficiency for many power sensitive applications.

Features

VIN range: 1.5.
12V.
Fixed and Adjustable output voltage as low as 0.6V.
500mA maximum output current.
425mV of typical dropout voltage.
Low self noise.
Enable (EN) pin for LDO on/off.
Optional Power Good (PG) output.
120µA typical supply current.
Optional ByPass (CBYP) pin for low PSRR and output noise.
PSRR > 40dB at 10KHz.
Stable with Electrolytic, Tantalum or Ceramic capacitors.
