AMS3102 - 300mA LOW DROPOUT VOLTAGE REGULATOR

Description

The AMS3102 series consists of positive fixed and adjustable voltage regulators ideally suited for use in battery-powered systems.

These devices feature very low quiescent current of 0.3mA or less when supplying 10mA loads.

Features

  • Fixed and Adjustable Versions Available.
  • Output Current in excess of 300mA.
  • Very Low Quiescent Current.
  • Reverse Battery Protection.
  • Input-output Differential less than 0.6V.
  • Short Circuit Protection.
  • Internal Thermal Overload Protection.
  • Load Dump Protection.
  • Overvoltage Protection.
  • Mirror Image Insertion Protection.
  • ON/OFF Pin.
  • External PNP Drive AMS3102 300mA LOW.

📥 Download Datasheet

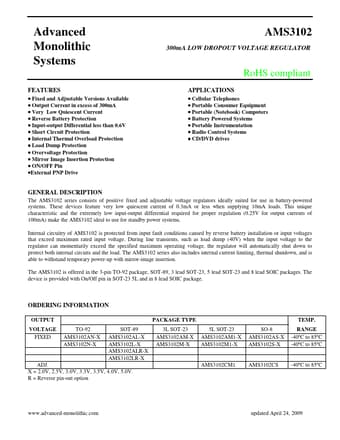

Datasheet preview – AMS3102

Datasheet Details

Part number AMS3102
Manufacturer Advanced Monolithic Systems
File Size 88.11 KB
Description 300mA LOW DROPOUT VOLTAGE REGULATOR
Datasheet download datasheet AMS3102 Datasheet
Additional preview pages of the AMS3102 datasheet.

📁 Similar Datasheet

  • AMS3103 - (AMS3103 / AMS3104) Central Office Quality Receiver (Aptek Williams)
  • AMS3104 - (AMS3103 / AMS3104) Central Office Quality Receiver (Aptek Williams)
  • AMS3109 - Micropower 700mA Low Noise Fast Transient Response LDO (AMS)
  • AMS3120 - 2A Fast Transient Linear Regulator (AMS)
  • AMS3131 - 3A Fast Transient Linear Regulator (AMS)
  • AMS3132 - 3A Fast Transient Linear Regulator (AMS)
  • AMS3132M - 3A Fast Transient Linear Regulator (AMS)
  • AMS302 - (AMSxxxx) Light Sensor (Panasonic)
  • AMS302T - (AMSxxxT) Light Sensor (Panasonic)
  • AMS303 - MICROPOWER COMPARATOR (AMS)
Other Datasheets by Advanced Monolithic Systems
  • AMS3100 - ADJUSTABLE MICROPOWER VOLTAGE REFERENCE DIODE
  • AMS3100-1.2 - MICROPOWER VOLTAGE REFERENCE
  • AMS3100-2.5 - MICROPOWER VOLTAGE REFERENCE
  • AMS3100A-2.5 - MICROPOWER VOLTAGE REFERENCE
  • AMS3101 - 150mA LOW DROPOUT VOLTAGE REGULATOR
  • AMS3106 - Micropower 500mA Low Noise Fast Transient Response LDO
  • AMS3107 - 500mA LOW DROPOUT VOLTAGE REGULATOR
  • AMS3108 - Micropower 700mA Low Noise Fast Transient Response LDO

Full PDF Text Transcription

Click to expand full text
Advanced Monolithic Systems FEATURES • Fixed and Adjustable Versions Available • Output Current in excess of 300mA • Very Low Quiescent Current • Reverse Battery Protection • Input-output Differential less than 0.6V • Short Circuit Protection • Internal Thermal Overload Protection • Load Dump Protection • Overvoltage Protection • Mirror Image Insertion Protection • ON/OFF Pin •External PNP Drive AMS3102 300mA LOW DROPOUT VOLTAGE REGULATOR RoHS compliant APPLICATIONS • Cellular Telephones • Portable Consumer Equipment • Portable (Notebook) Computers • Battery Powered Systems • Portable Instrumentation • Radio Control Systems • CD/DVD drives GENERAL DESCRIPTION The AMS3102 series consists of positive fixed and adjustable voltage regulators ideally suited for use in battery-powered systems.
