AMS3109 - Micropower 700mA Low Noise Fast Transient Response LDO

AMS3109 Description

AMS3109 Micropower 700mA Low Noise Fast Transient Response LDO General .
The AMS3109 is a high performance linear regulator with very low dropout voltage and excellent transient response.

AMS3109 Features

* VIN range: 1.5
* 12V
* Adjustable output voltage as low as 0.6V
* 700mA maximum output current
* 550mV typical dropout voltage at 700mA
* Low self noise
* Enable (EN) pin for LDO on/off
* 120µA typical supply current
* ByPass

AMS3109 Applications

* The device is capable of supplying 700mA of output current with a typical dropout voltage of 550mV. The product is available in adjustable output voltage. The linear regulator has been optimized for noise sensitive applications. The device includes an Enable pin for electrical on/off of the regulat

📥 Download Datasheet

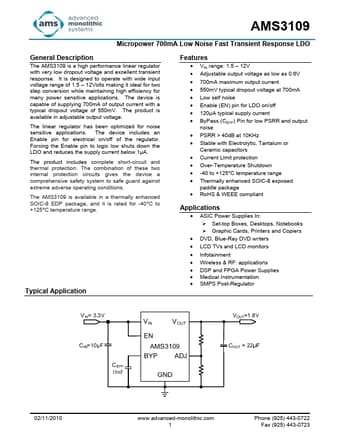

Preview of AMS3109 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS3109
Manufacturer
AMS
File Size
584.51 KB
Datasheet
AMS3109-AMS.pdf
Description
Micropower 700mA Low Noise Fast Transient Response LDO
