ACT2802C, ACT2802-Active - 5V/2.5A Backup Battery Pack Manager

Name: ACT2802C
SKU: ACT2802C-1104952

Active-Semi

📥 Download Datasheet

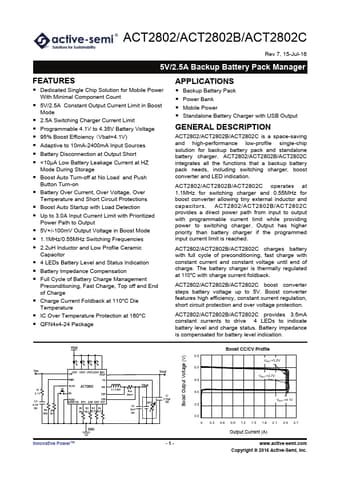

ACT2802C Datasheet Preview — This datasheet PDF includes multiple part numbers: ACT2802C, ACT2802-Active. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ACT2802C, ACT2802-Active
Manufacturer	Active-Semi
File Size	871.56 KB
Description	5V/2.5A Backup Battery Pack Manager
Datasheet	ACT2802-Active-Semi.pdf
Note	This datasheet PDF includes multiple part numbers: ACT2802C, ACT2802-Active. Please refer to the document for exact specifications by model.

ACT2802C Product details

Description

ACT2802/ACT2802B/ACT2802C is a space-saving and high-performance low-profile single-chip solution for backup battery pack and standalone battery charger.

Features

 Dedicated Single Chip Solution for Mobile Power With Minimal Component Count.
 5V/2.5A Constant Output Current Limit in Boost Mode.
 2.5A Switching Charger Current Limit.
 Programmable 4.1V to 4.35V Battery Voltage.
 95% Boost Efficiency (Vbat=4.1V).
 Adaptive to 10mA-2400mA Input Sources.
 Battery Disconnection at Output Short.
.
